Product Description

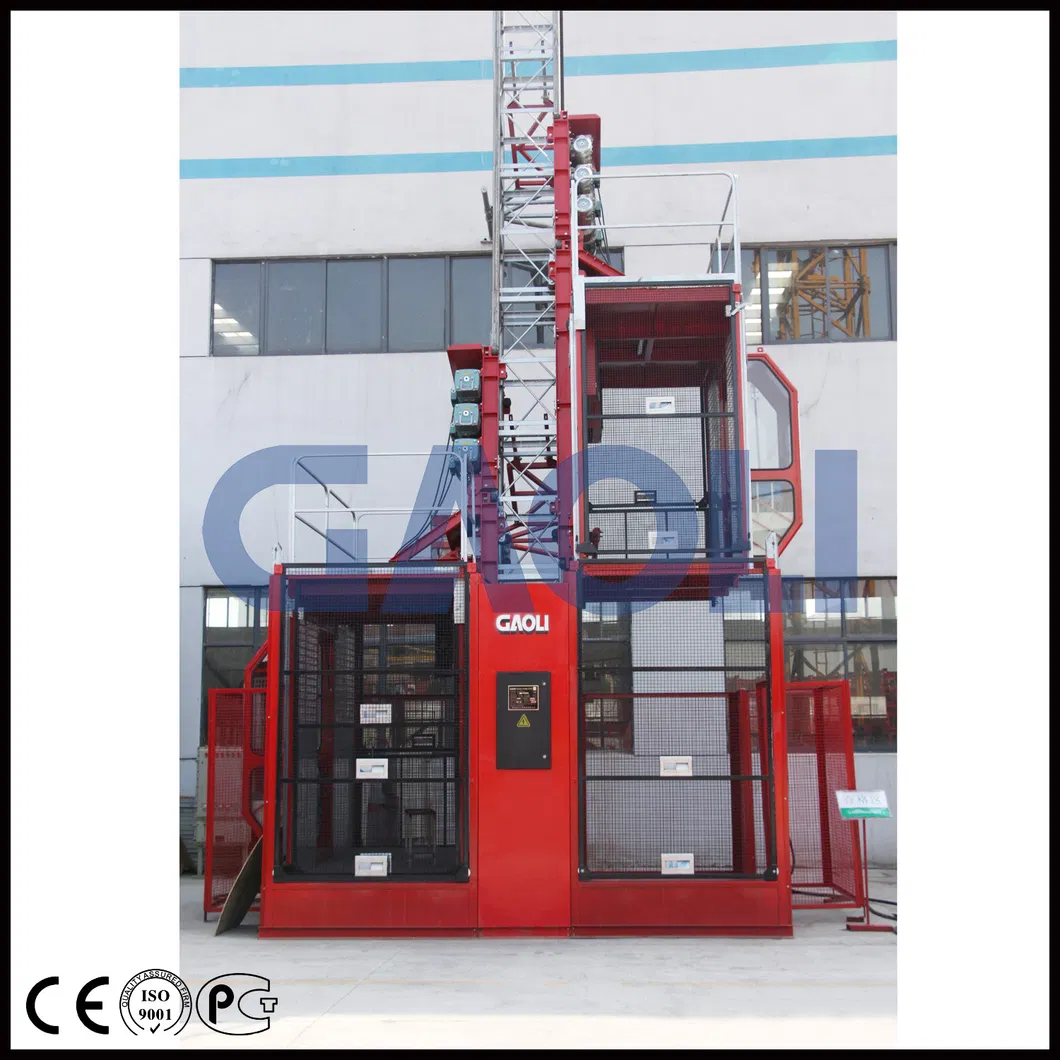

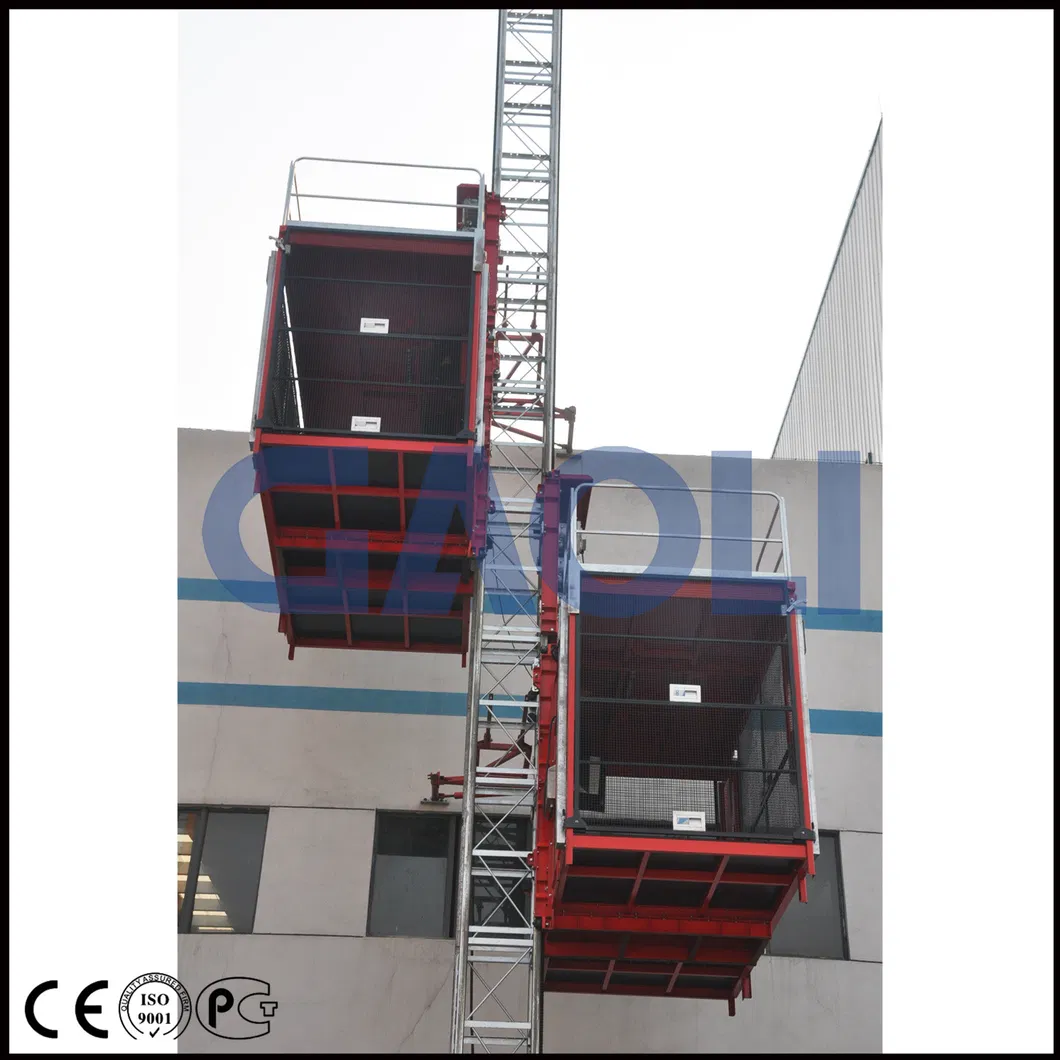

Gaoli Popular New Design CE Approved Construction Elevator SC100/100

1. Description

Construction hoist is also called building construction elevator, outdoor elevator, building lifts. It is widely used as construction machinery to lift people and building materials.

Construction hoist is mainly used in the internal and external decoration, bridge building, chimney, etc

SC series Construction Hoist/Elevators adopts rack-and-pinion transmission. For so many years, having digested domestic and foreign advanced technology and innovated, it has become newly designed, compact structure, convenient operation, easy installation and disassembly, beautiful shape and reliable performance.

> Mast Section Dimension: 650 * 650 * 1508, 800 * 800 * 1508

> Main Chord: Φ76 * 4.5, Φ76 * 6.0, Q345B

Structure forms varies: SCD two drive, SC three drive without balance, built-in upper-setting and frequency control, etc.

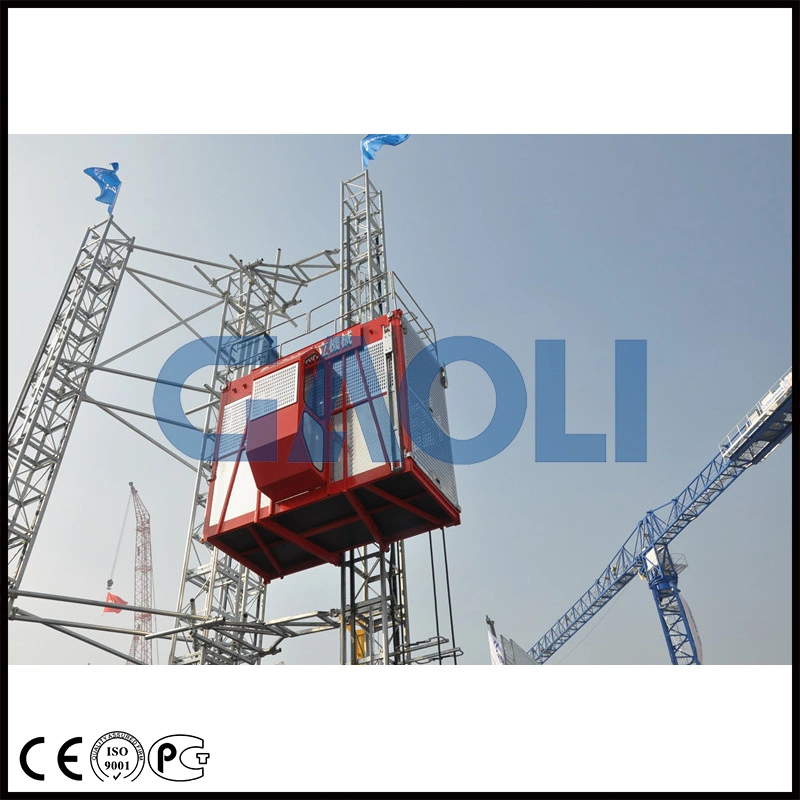

Application: the equipment is applicable to people and material transporting in high building construction that above 60m, such as bridges, chimneys, mansions, etc.. And can also be used in warehouse , wharf, etc for vertical transportation

Color: red

Dimension of mast section 650*650*1508mm

Mass of mast section 150kg

Mass of external cages 1480kg

Space dimension in cage 3.2*1.5*2.5m

Gaoli Ce Approved Construction Elevator Sc100/100

2.Main Technical Parameters

Parameter	Unit	Model
Parameter	Unit	SC100	SC100/100	SC200	SC200/200
Rated capacity	kg	1000	2×1000	2000	2×2000
Number of people	No.	12	2×12	16	2×16
Rated lifting speed	m/min	36	36	36	36
Max.lifting height	m	200	200	200	200
Motor power	kw	2×11	2×2×11	3×11	2×3×11
Suspension cage inner size	m	3×1.3×2.2	3×1.3×2.2	3×1.3×2.2	3×1.3×2.2
Weight of 650 standard section	kg	124	148	124	148
Dimension of 650 standard section	mm	650×650×1508	650×650×1508	650×650×1508	650×650×1508
counter weight	kg	=	=	=	=
Suspender loading capacity	kg	200	200	200	200
Dimension of 800 standard section	mm	800×800×1508	800×800×1508	800×800×1508	800×800×1508

Gaoli Ce Approved Construction Elevator Sc100/100

3.Salient Features of Construction Elevator

Mast section welded by welding Robot ensures reliable quality and elegant appearance.
All the steel structures are processed with blasting technology to remove rust. The adhesion of surface painting is outstanding.
Suspension cage guarding board adopts figured aluminum plate and numerical control punched aluminum plate. The suspension cage is lightweight and artistic in appearance.
Transmission mechanism supplied by the professional manufacturer has high efficiency, long service life and stability in performance.
Complete set of overload protection devices, variety of limiters and mechanical chain devices ensure its reliability. Anti-falling safety device adopts SAJ40-1.2, which restricts the excessive downward movement of the cage, preventing and eliminating accidents.
Frequency conversional construction elevator is safe, stable and comfortable. Starting electricity is smaller than working electricity, energy-saving and high efficient.

Gaoli Ce Approved Construction Elevator Sc100/100

4.Company profile:

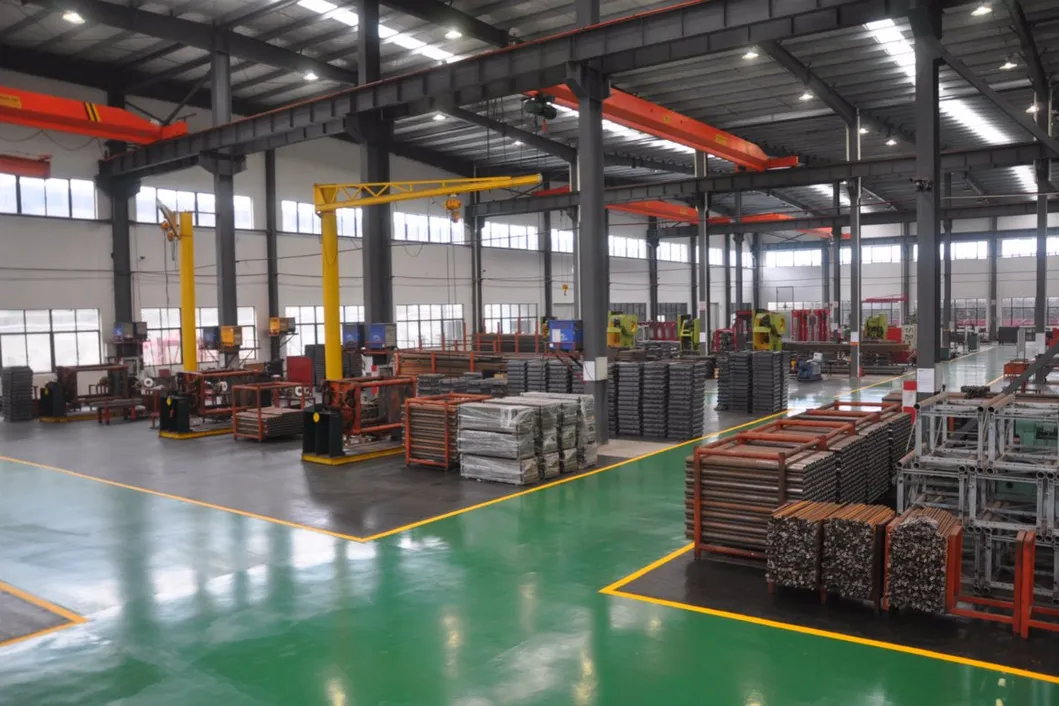

Established in August 2003, GAOLI Engineering Machinery Co., Ltd, is headquartered at Tongjing Town of Jiangning District, Nanjing, covering an area of 36,000 square meters, and a construction area of 20,000 square meters.
GAOLI will continue to adhere to the business philosophy of "Customer Supreme, Quality First and Pursuit of Excellence", form an interest community with customers and partners, and bring GAOLI brand, capital, technology and market strength into full play to further improve service quality and capability, providing customers with high quality and technologically advanced products and services. "To achieve your dreams, we will continue our efforts!"
