4 Sides Opening of Sightseeing Passenger Elevator / Panoramic Elevator Lift
4 Sides Opening of Sightseeing Passenger ElevatorAs the technical innovation of our company, the panoramic elevator of 4 sides opening and without machine room took half a year to success from product research to sample test, which initially created the first panoramic elevator of 4 sides opening an......
Send Inquiry
Product Description

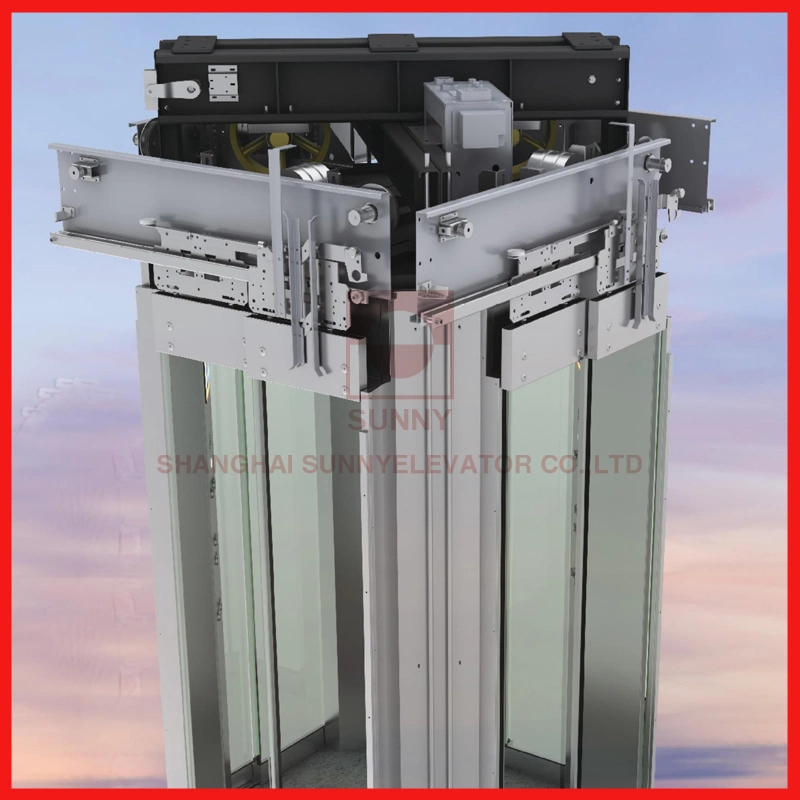

4 Sides Opening of Sightseeing Passenger Elevator
As the technical innovation of our company, the panoramic elevator of 4 sides opening and without machine room took half a year to success from product research to sample test, which initially created the first panoramic elevator of 4 sides opening and without machine room in the world.
1.With double counterweight and 1:1 roping, it layouts the counterweight to the opposite corners of the shaft, and utilizing the shaft space to a maximum limit, which realized door opening from 4 sides.
2.Without bracket for guide rail, brings about original structure and beautiful building.
3.Cross beam for car frame top, the car bottom has brace structure to solve the problem of 4 side openings and car partial load strength problem.
4.Speed governor with no tension wheel, to solve the problem of narrow shaft.
5.Independent HOP control realizes control of 4 doors.
LAYOUT FOR PANORAMIC ELEVATOR WITH 4 SIDES OPENING DOORS
Features
1. Safe and reliable
Our passenger elevator puts safety the first place, to ensure each passenger's safe delivery to destination.
2. Space configurability
From the view of space saving, Our passenger elevator make new layout of machiine room, improved the space availability.
3. Energy saving and environment friendly
Our passenger elevator adopts gearless permanent magnet synchronous machine to save energy and protect environment.
4. High performance
Our passenger elevator is euipped with stable control system. Intelligent lift dispatching system provides the best solution for customer riding.
5. Free custom-made
Customers can choose their favorite and customized apperance for their own elevators.
Delivery
About us
Why choose us?
Shanghai Sunny Elevator Co., Ltd, founded in 1992, is a 28-years professional manufacturer specializing in designing and producting Opto-Electro-Mechanical products.
Sunny Elevator has started import and export since 2012.
We have experience in exporting all kinds of elevator parts and complete elevator to 80 countries all over the world.
As the technical innovation of our company, the panoramic elevator of 4 sides opening and without machine room took half a year to success from product research to sample test, which initially created the first panoramic elevator of 4 sides opening and without machine room in the world.
1.With double counterweight and 1:1 roping, it layouts the counterweight to the opposite corners of the shaft, and utilizing the shaft space to a maximum limit, which realized door opening from 4 sides.
2.Without bracket for guide rail, brings about original structure and beautiful building.
3.Cross beam for car frame top, the car bottom has brace structure to solve the problem of 4 side openings and car partial load strength problem.
4.Speed governor with no tension wheel, to solve the problem of narrow shaft.
5.Independent HOP control realizes control of 4 doors.
| Car buffer | R1=30(KN) | CW buffer | R2=20(KN) | Bearing beam counterforce | R5=50(KN) | Load-bearing counter force | R4=35(KN) |
| Shaft size | 2000X2000 | Car size | 1540x1540x2400 | Door size | 800x2100 | Passenger | 10prs |
| Type | panoramic elevator | Load | 800kg | Speed | 1.0m/s | Motor power | 7.7kw |
LAYOUT FOR PANORAMIC ELEVATOR WITH 4 SIDES OPENING DOORS
Features
1. Safe and reliable
Our passenger elevator puts safety the first place, to ensure each passenger's safe delivery to destination.
2. Space configurability
From the view of space saving, Our passenger elevator make new layout of machiine room, improved the space availability.
3. Energy saving and environment friendly
Our passenger elevator adopts gearless permanent magnet synchronous machine to save energy and protect environment.
4. High performance
Our passenger elevator is euipped with stable control system. Intelligent lift dispatching system provides the best solution for customer riding.
5. Free custom-made
Customers can choose their favorite and customized apperance for their own elevators.
Delivery
About us
Why choose us?
Shanghai Sunny Elevator Co., Ltd, founded in 1992, is a 28-years professional manufacturer specializing in designing and producting Opto-Electro-Mechanical products.
Sunny Elevator has started import and export since 2012.
We have experience in exporting all kinds of elevator parts and complete elevator to 80 countries all over the world.
