FUJI Vvvf 0.4m/S China Factory Elevator Cheap Small Sightseeing Residential Home Villa Passenger Elevator Lift Panoramic/Observation Glass Elevator
MR or MRL picture introduce FUJI Vvvf 0.4m/S Home Elevator Cheap Small Sightseeing Villa Passenger Elevator Lift Panoramic/Observation Glass Elevator Feature Feature 1. Safe and reliableThe FUJI passenger elevator puts safety first and is responsible to the customer and ensures that each passenger ......
Send Inquiry
Product Description
FUJI Vvvf 0.4m/S Home Elevator Cheap Small Sightseeing Villa Passenger Elevator Lift Panoramic/Observation Glass Elevator
Feature
1. Safe and reliable
The FUJI passenger elevator puts safety first and is responsible to the customer and ensures that each passenger is safely delivered to the destination.
2. Spatial configurability
From a space-saving point of view, FUJI passenger elevators provide a new layout for the machine room, increasing space availability.
3. Environmental protection and energy saving
FUJI passenger elevators use gearless permanent magnet synchronous motors to save energy and protect the environment.
4. High performance
The FUJI passenger elevator uses a stable control system with a maximum capacity of 1600kg. The intelligent lifting and dispatching system provides the best solution for customers' rides.
5. Self-selectivity
Customers can choose their own favorite and custom look for their elevators
From the perspective of automotive finishes, designs, ceilings and flooring materials.
1. How to provide you with after-sales service
1) The factory will provide an installation manual for your technical staff.
2) The factory can provide remote guidance for accurate commissioning.
3) For special requirements, the factory can send engineers to the site to help guide the installation.
4) For our agents, FUJI welcomes you to send technicians to our factory for inspection.
2. How to report after-sales problems
1) Please tell us the factory number or contract number, the factory can check the product specifications according to the code and quickly give a solution.
2) Send an email or call the foreign trade personnel who handed over.
Standard Decoration Optional(if you have other request,we can provide)
| It's wall | Hairline stainless steel |
| Ceiling | LED Fluorescent, according to the car design |
| Car bottom | PVC |
| Jamb material | The first layer of hairline, the remaining steel plate Spraying |
| Hall door | The first layer of hairline, the remaining steel plate Spraying |
Passenger Elevator Parameter
| Load capacity (Kg) | Rated Speed m/s | Car Size cw*cd(mm) | Door Opening Size ew*eh(mm) | Shaft Size hw*hd(mm) | Top floor height Th(mm) | Pit Depth (mm) |
| 450 | 1 | 1100×1100 | 800×2100 | 2050×1850 | 4500 | 1500 |
| 630 | 1 | 1400×1100 | 800×2100 | 2250×1900 | 4500 | 1500 |
| 1.5 | 4700 | 1600 | ||||
| 1.75 | ||||||
| 800 | 1 | 1400×1350 | 800×2100 | 2200×1950 | 4000 | 1500 |
| 1.5/ 1.75 | 4700 | 1600 | ||||
| 1000 | 1 | 1500×1550 | 900×2100 | 2350×2150 | 4000 | 1600 |
| 1.5/ 1.75 | 4700 | 1600 | ||||
| 1600 | 1 | 1800*2000 | 1100*2100 | 2900*2200 | 4350 | 1500 |
| 1.5/ 1.75 | 4500 | 1600 |

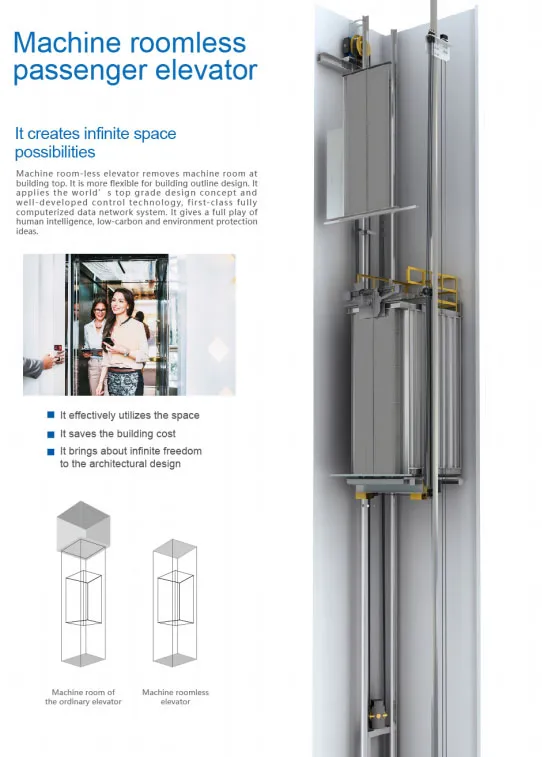

Machine roomless passenger elevator
It creates infite space possibilities
Machine room-less elevator removes machine room at building top.It is more flexible for building outline design.It applies the world's top grade design consept and well-developed control technology,frist-class fully computerized data network system.It gibes a full play of human intelligence,low-carbon and environment protection ideas.

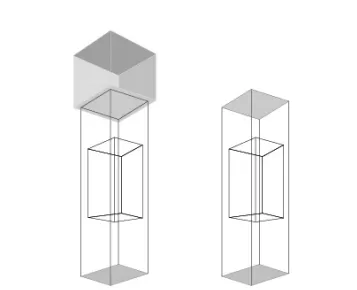

Machine room of Machine roomless elevator
the ordinary elevator

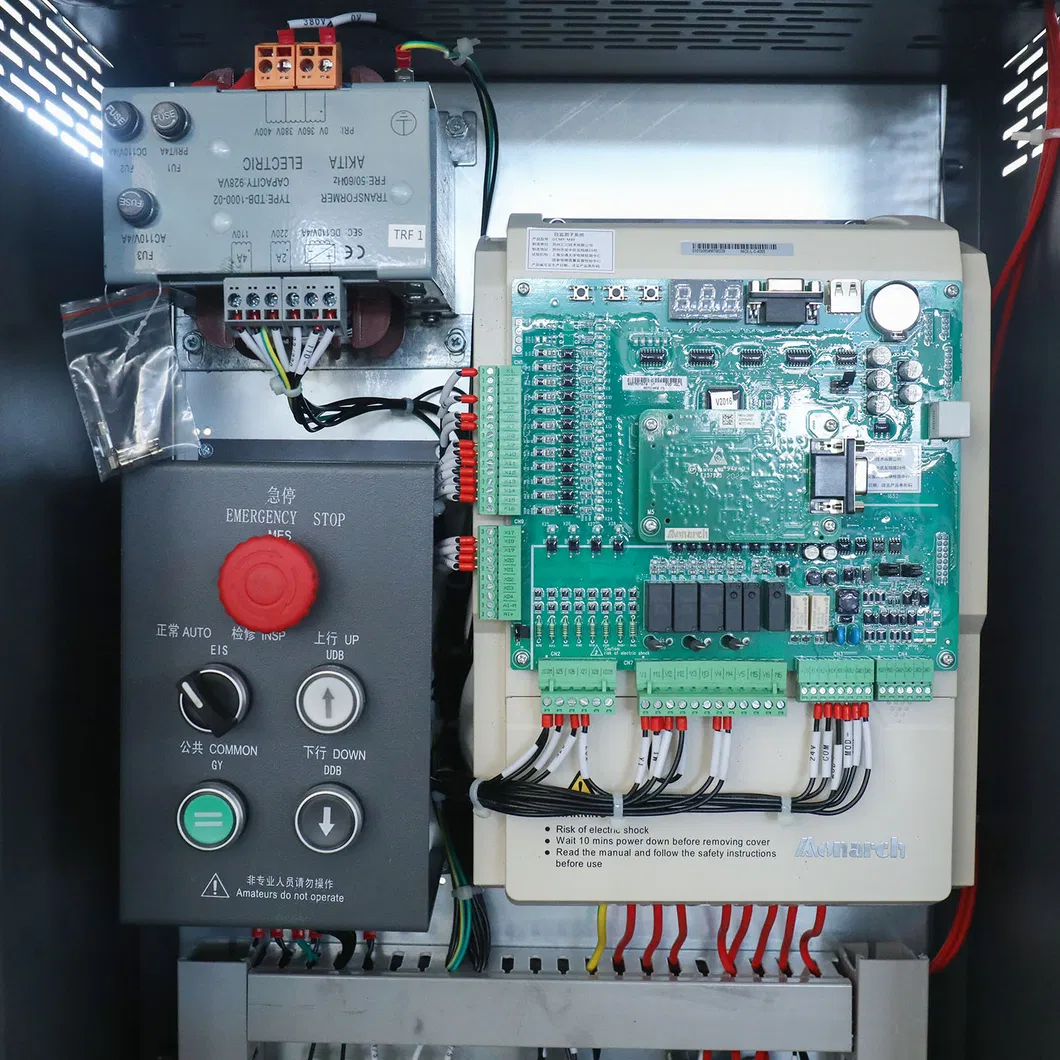

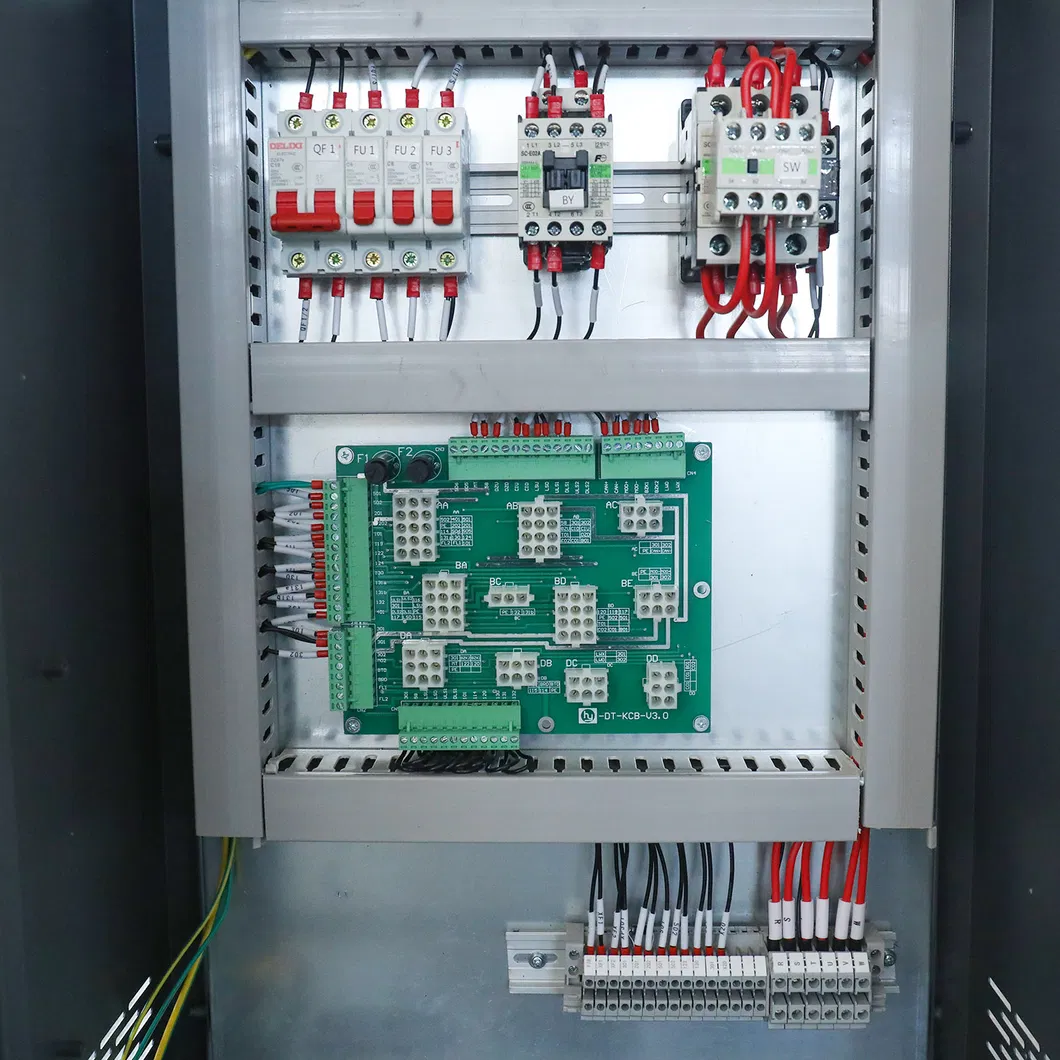

1.Intellectial main control system
It gives first priority to effectiveness in vertical transport field.In order to fully optimize the service efficacy of the elevator system,FUJI elevator fulfills the intellectual managements such as multi-computer,modular and network control etc.Through fully computerized intellectual control system.It instantly feeds back the elevator running conditions.It provides the passengers with the most efficient gold-collar services.

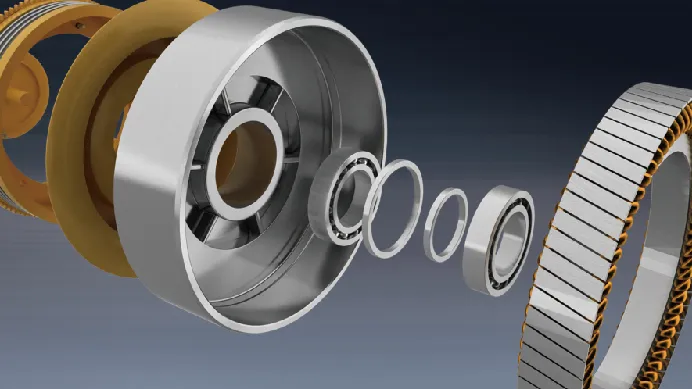

2.New generation permanent magnet synchronous traction machine
New generation permanent magnet synchronous and gearless traction machine chooses rare earth material.It fully merges with co-axial drive technology,digital variable frequency technology and group-computer combined technology with low running cost and low energy loss.

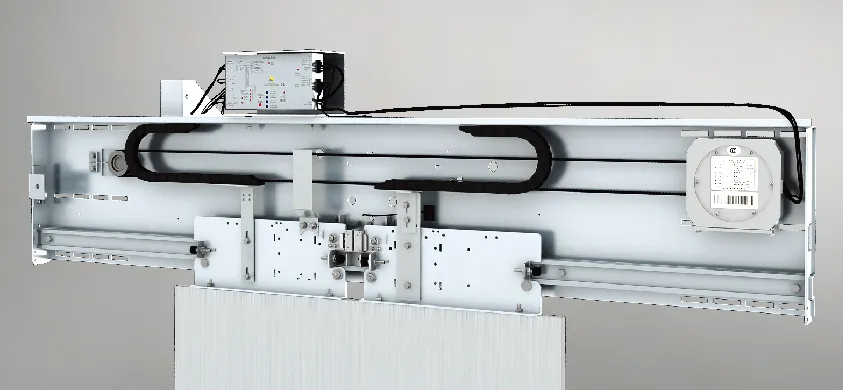

3.Top advanced door operator system
The door operator control system of FUJI elevator applies dual control system,One group is controlled by main controller of control cabint,the other one by door operator controller,which greatly reduces non-opening accidents due to trouble of door machine control.

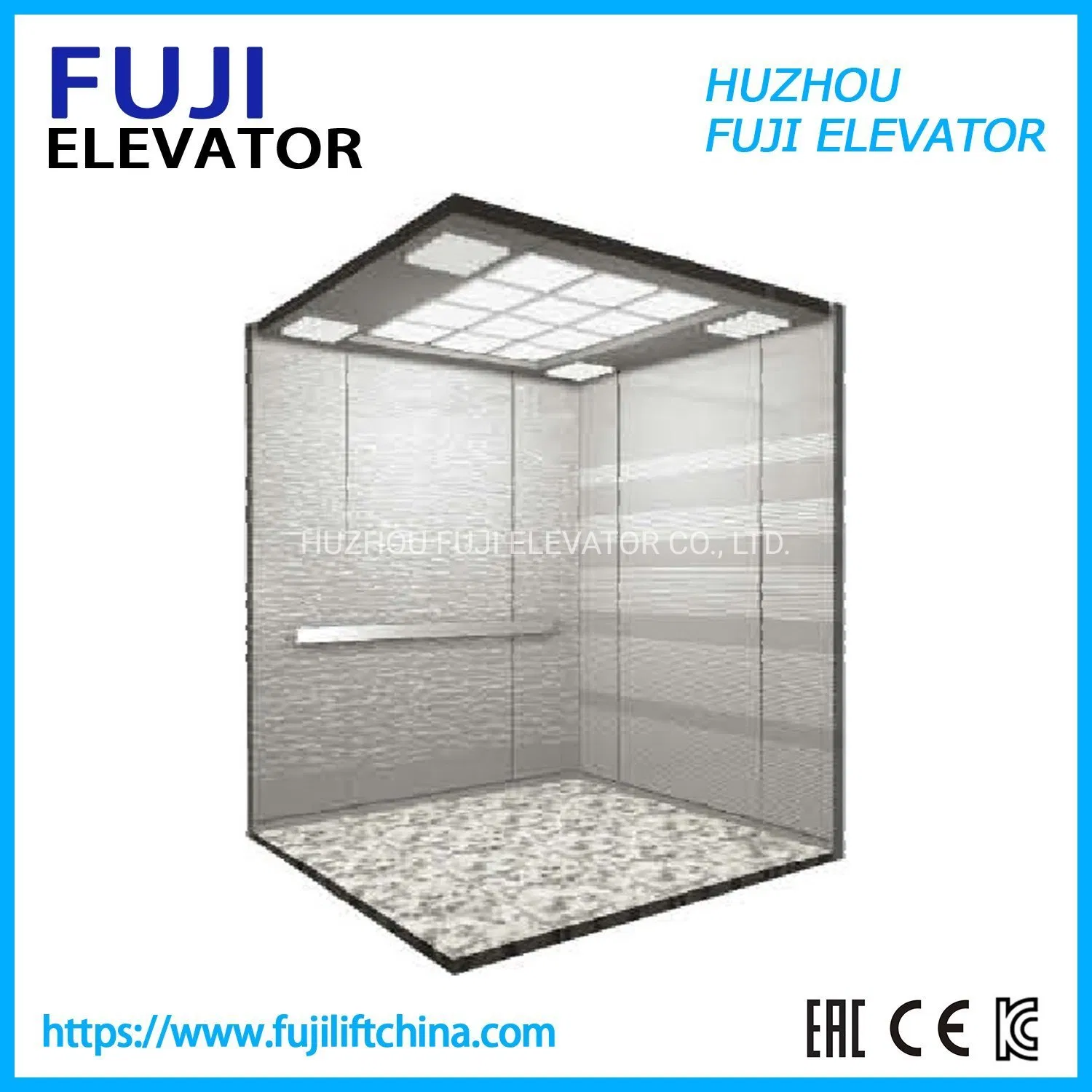

4.Elevator decoration
Standard Functions
| No. | Description name | Description | No. | Description name | Description |
| 1 | Static electricity protection | Eliminate static electricity raised from running of steps. | 11 | Over-load protection | Protection against risk of motor continually over-load. |
| 2 | Emergency stop button | Push the emergency stop button to shop the escalator/moving walk against emergency raise. | 12 | Step sagging protection | Protection against risk of steps being breakage and sagging. |
| 3 | Skirting protection | Protection against risk of foreign bodies being jammed into clearance between steps and skirting. | 13 | Broken step chain protection | Protection against risk of steps being breakage or under elongation. |
| 4 | Handrail entry safety protection | Protection against risk of foreign bodies being jammed into handrail entry. | 14 | Comb teeth safety protection | Protection against risk of foreign bodies being trapped at the point where the step enter the comb. |
| 5 | Main drive chains safety protection | Protection against risk of drive chains being breakage or undue elongation. | 15 | Handrail speed and broken handrail monitor | It detects the handrail speed and monitors the broken handrail. |
| 6 | Over-speed protection | Protection against risk of speed being over 20% of rated speed. | 16 | Skirting anti-clamp device | It sets protection brush in the skirting on both sides of the step. |
| 7 | Under-speed protection | Protection against risk of speed less than over 80% of rated speed. | 17 | Step missing detection | It detects the step missing in the stairway. |
| 8 | Un-intentional reversal protection | Protection against risk of unintentional reversal protection. | 18 | The brake opens the monitor switch | It monitors whether the brake opens or not in during the escalator running. |
| 9 | Floor-plate monitor switch | When the pit cover plate opens,it cuts off safety circuit and stops the escalator safety switch. | 19 | Handwheel and handwheel protection cover open safety | During the use of handwheel,when open the handwheel and the handwheel protection cover,the safety switch will cut the safety circuit against escalator running. |
| 10 | Short circuit protection | Protection against risk of short circuit. | 20 | Lack of phase,error phase protection | Protection against risk of phase failure. |
The perfect and comfortable life
FUJI passenger elevator can offer you a pleasant ambience,special inverter system control the running position,upgrading the comfort feeling all-sided.Low noise,easy installation,accomplish you perfect living condition.Not only reduce the cost of designing and building on machine room,also make best use of yourbuiliding room.Small occupying space.No hoistway,safe and durable elevator is provided for you by FUJI.

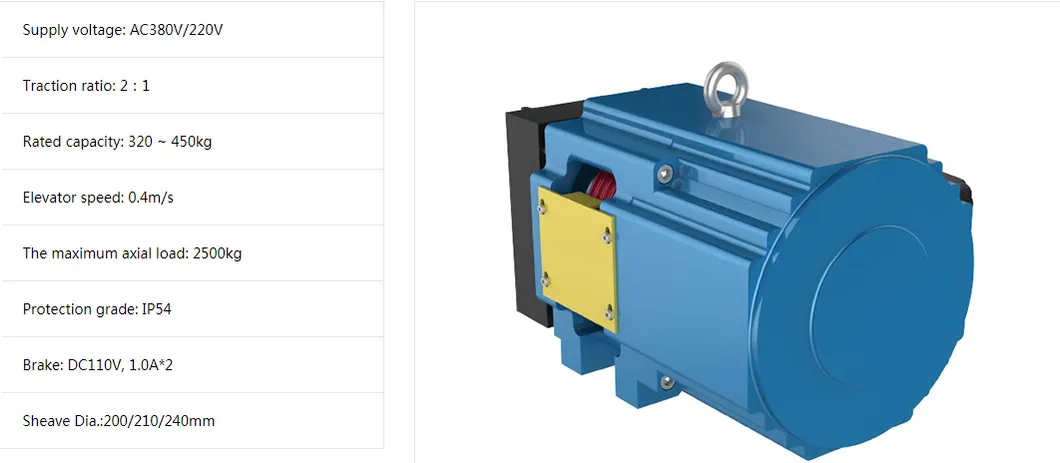

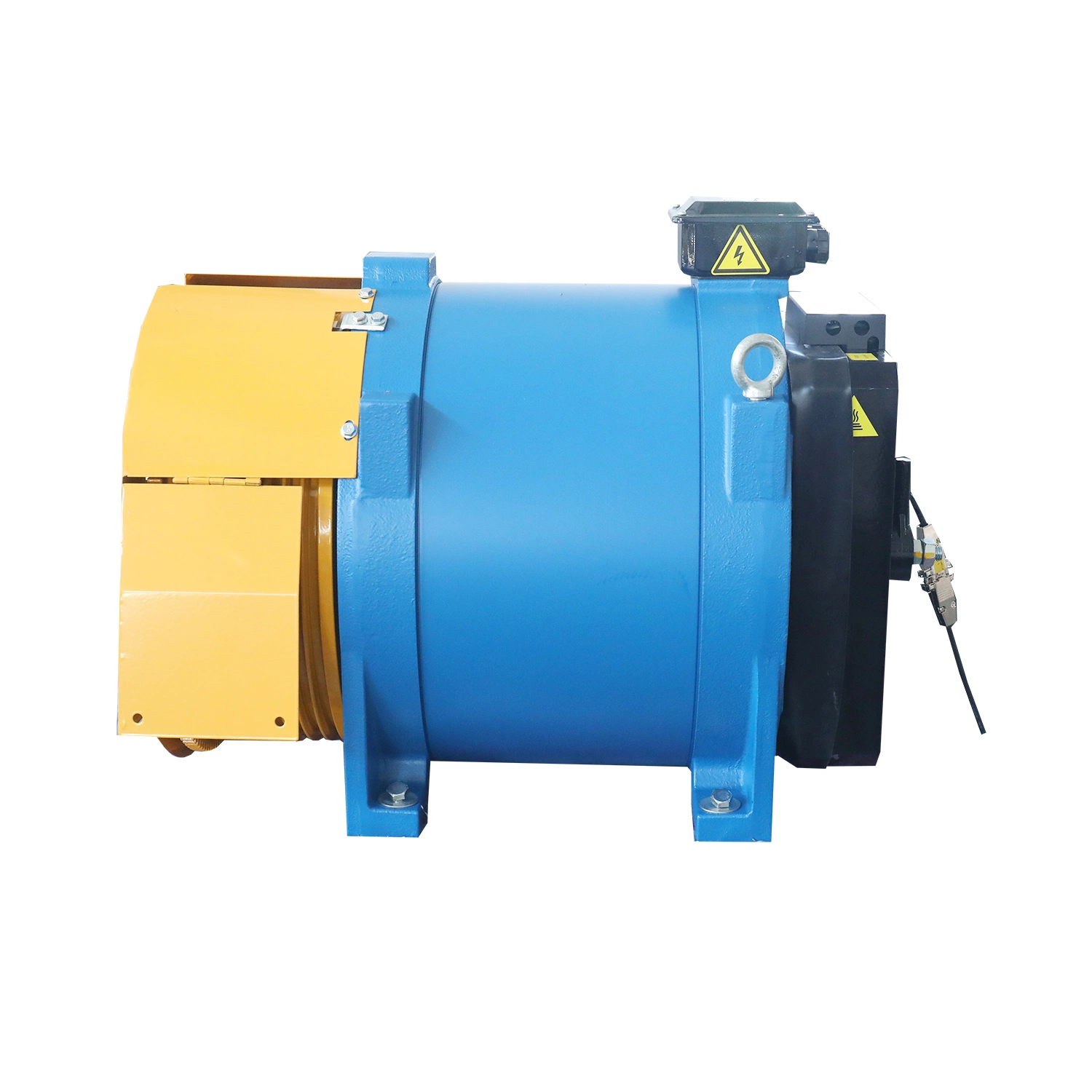

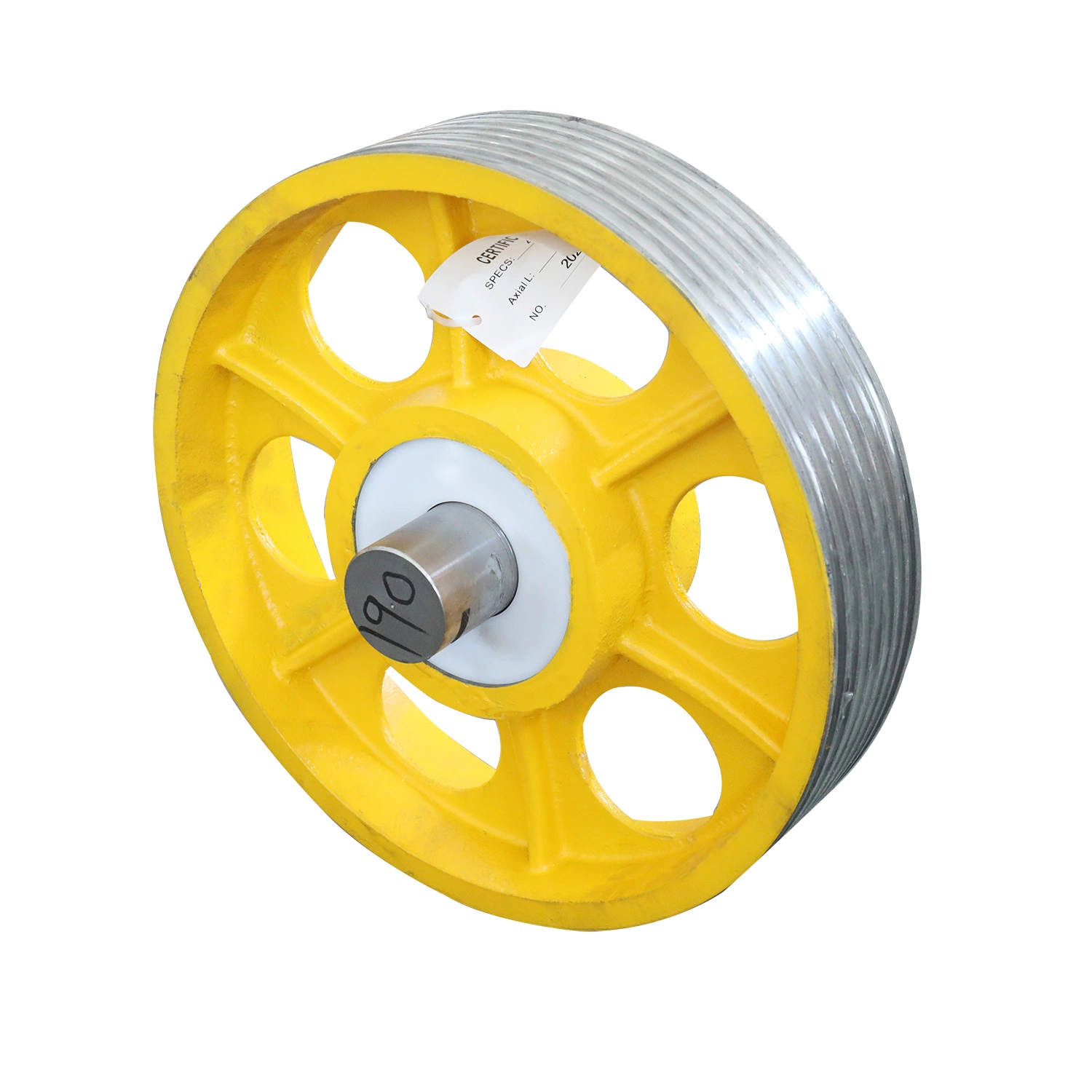

Tracton Machine
About us
Huzhou fuji elevator company adheres to the advanced international elevator management mode and innovative fruits in technical field.It actively introduces the first-class elevator manufacture equipment.It establishes the perfect and superior product system.It takes the management ideas of "since,creditable,promise-keeping,cooperation and double-win".it is engaged in sci-tech innovation.
It owns multiple original core technologies.At present,the products cover passenger elevator(small machine room,traction type villa elevator),freight elevator.automobile elevator,escalator,moving walk series etc.According to the user's requirements, it executes the market operation mode which integrates the manufacture,sales,installation,repair and maintenance into one.It design and produces different kinds of plural elevators as per the user's actual.
