German Technology Passenger Elevator

Product Description

Product Features

1. Low carbon, energy saving, space saving.
2. Lower noise, safe and reliable running.
3. Competitive price and high quality.

OMS Advantages

1. Germany technology.
2. Professional R&D team, with strong non-standard design capability
3. Best service:
Before sale-specially custom-made for you
After sale-quick response, 18 months warranty
4. OEM & ODM both welcomed

Small Machine Room Elevator Specification

Loading capacity (passengers)		450kg (5 persons)			630kg (8 persons)				800kg (10 persons)					1000kg (13 persons)					1250kg (16 persons)					1600kg (21 persons)					2000kg (26 persons)
Rated speed		0.63	1.0	1.5	0.63	1.0	1.5	1.75	1.0	1.5	1.5	2.0	2.5	1.0	1.5	1.75	2.0	2.5	1.0	1.5	1.75	2.0	2.5	1.0	1.5	1.75	2.0	2.5	1.0	1.5	1.75
Door opening size (mm)		700			800				800					900					1000					1100					1100
Car size	CW	1100			1400				1400					1600					1800					1800					1700
(mm)	CD	1100			1100				1350					1500					1600					1850					2300
Hoistway size	HW	1600			2000				2000					2200					2400					2400					2850
(mm)	HD	1700			1750				2000					2200					2350					2600					2850
Machine room size (mm)	MRW	1600			2000				2000					2200					2400					2400					2850
	MRD	≥2000			≥3100				≥3300					≥3600					≥3700					≥4000					≥4000
	MRH	2800			2800				2800					2800					2800					2800					2800
Overhead (mm)		4200	4200	4400	4200	4200	4600	4600	4200	4400	4600	4850	5100	4200	4400	4600	4850	5100	4200	4600	4600	4850	5100	4200	4600	4600	4850	5100	4200	4600	4600
Pit Depth (mm)		1400	1500	1600	1400	1500	1600	1600	1500	1600	1600	1700	1900	1500	1600	1600	1700	1900	1500	1600	1600	1700	1900	1500	1600	1600	1700	1900	1500	1600	1600
Max. travel height (m)		35	60	75	35	60	75	90	60	75	90	100	120	60	75	90	100	120	60	75	90	100	120	60	75	90	100	120	60	75	90

*Note: Only for reference, final dimension please subject to the layout drawing.

Passenger Elevator Function Table

Standard Function

Running Function	VVVF Drive	VVVF door operator
	VIP (special) running	Automatic adjustment of door open holding time
	Automatic by pass	Door re-open at current floor
	Instant door close	Arrival gong
	Car call cancel	Parking
	Direct parking	Light curtain protection
Safety Function	Light curtain protection	Overload stop
	Inner counting protection	Inspection operation
	Troubleshooting	Auto-landing with fault
	Door close repeat	Top/bottom limit and final limit protection
	Down running protection	Up running protection
	Safety circuit protection	Door interlock protection
	Main contactor protection	Brake detecting protection
	Button inset diagnose
Human-machine Interface	Micro push button	Running state display
	Floor selection in machine room	No stop floor set
	Homing floor set	Floor indication set
	Hoistway self-learning	Interference evaluation
	Encoder evaluation	Input port evaluation
Emergency Function	Emergency lighting	Emergency electric operation
Emergency Function	5-way intercom	Alarm bell
Energy Saving	Fan & light automatic off	Start/stop timing

Optional Function

Running Function	Anti-nuisance	Door close delay
	Fire emergency return	Door open in advance
	Re-leveling function	Duplex control function
	Group control function	Double door control
Human-machine Interface	Voice announcement	Back ground music
	Sub-C.O.P.	C.O.P. for handicapped passengers
	IC Card control
Emergency Function	Automatic Rescue Device (ARD)
Monitor Function	Remote control	Traction machine monitor

Decoration

German Technology Passenger Elevator

Packing & Delivery

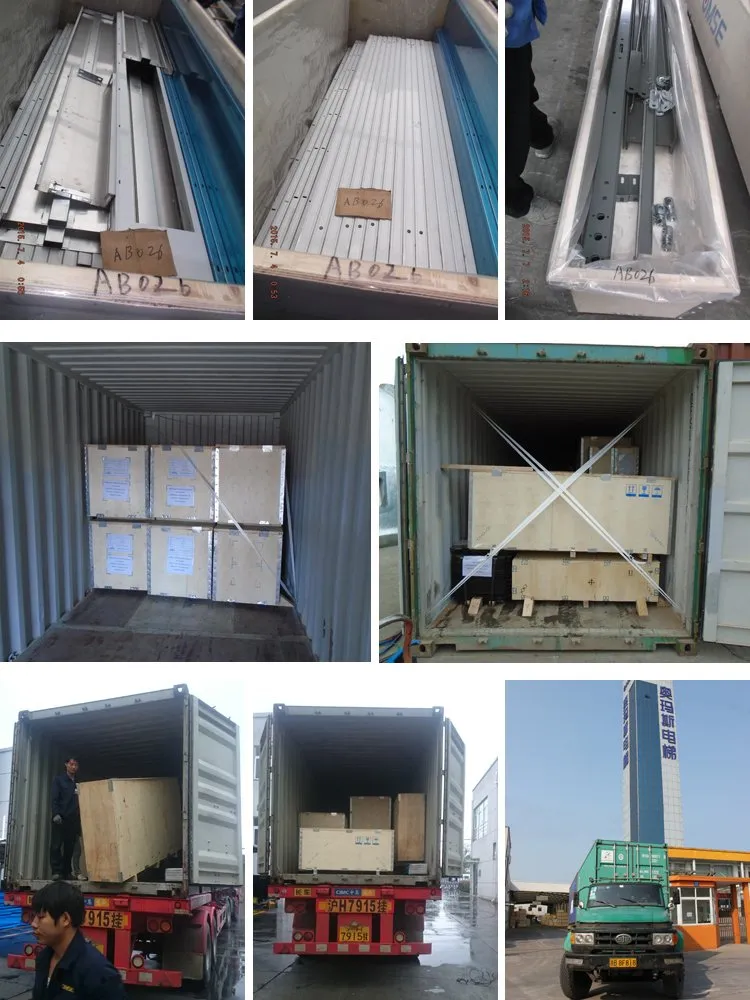

Packaging Details:
Each elevator will be packed in plywood cases, suitable for long distance ocean transportation well protected against moisture and rust.
1~2 units of elevator will be load in a 20 foot container
Delivery Detail:
35 days after receipt of approved contrac and down payment

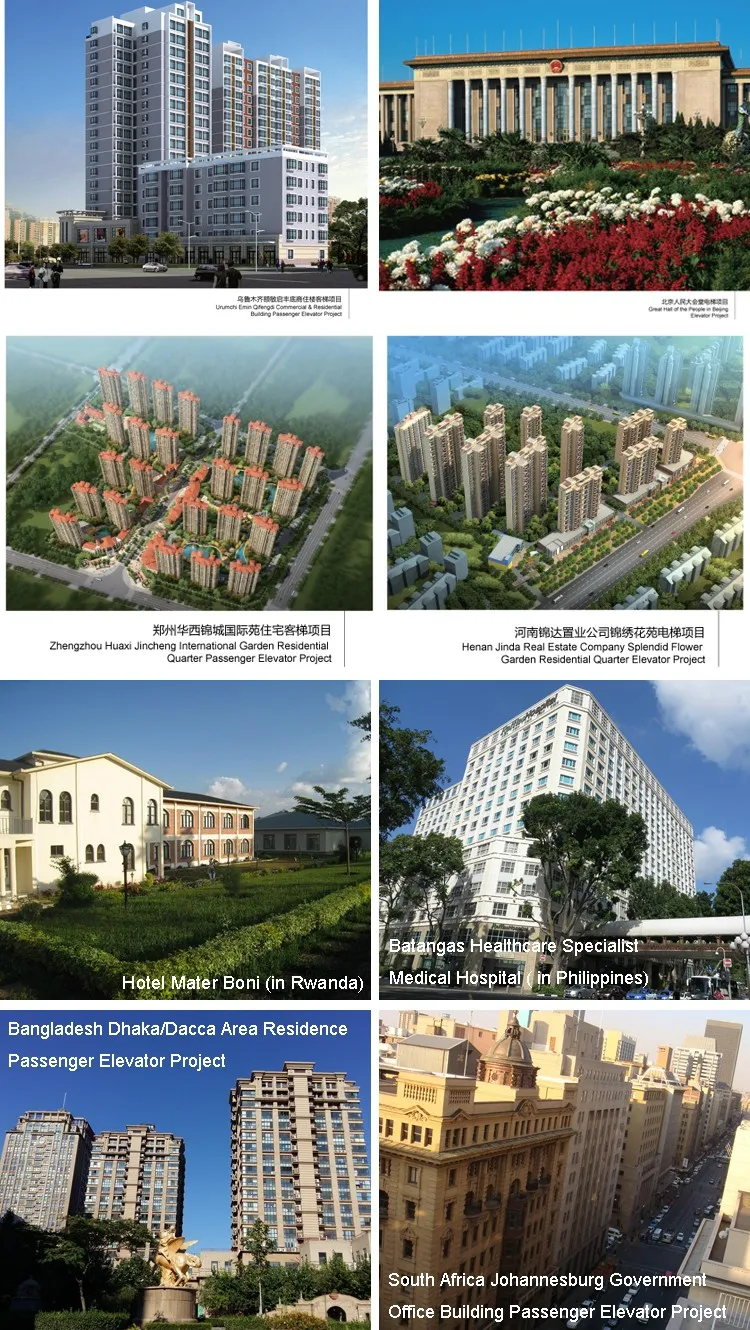

Classic Projects

German Technology Passenger Elevator
