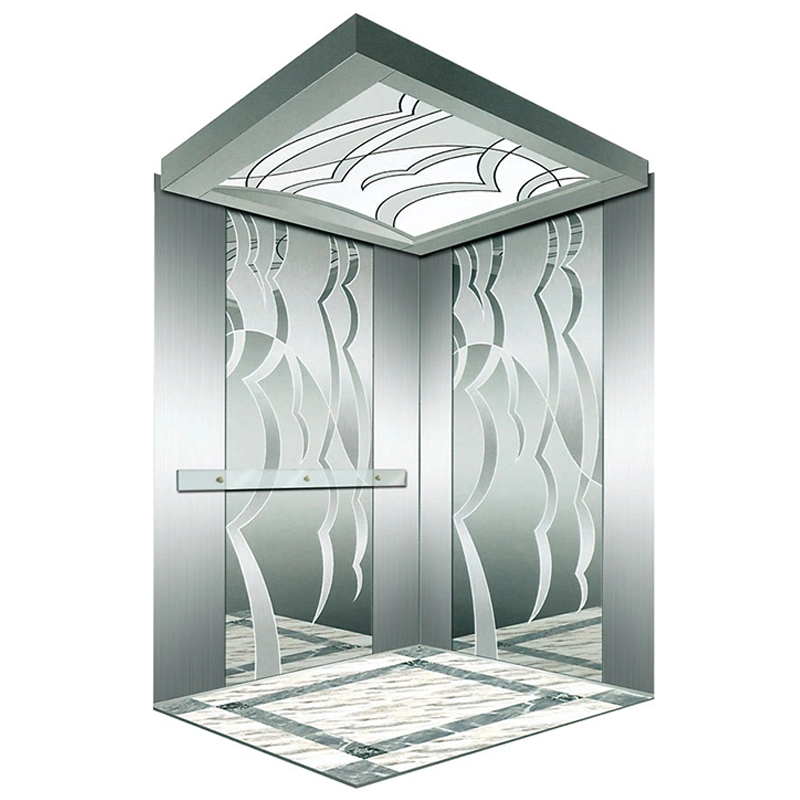

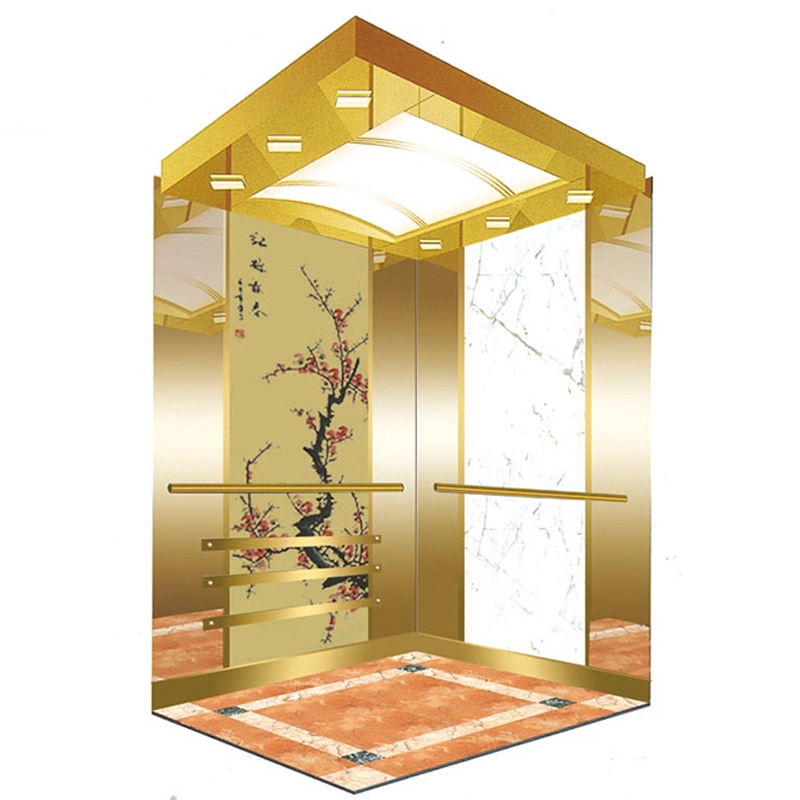

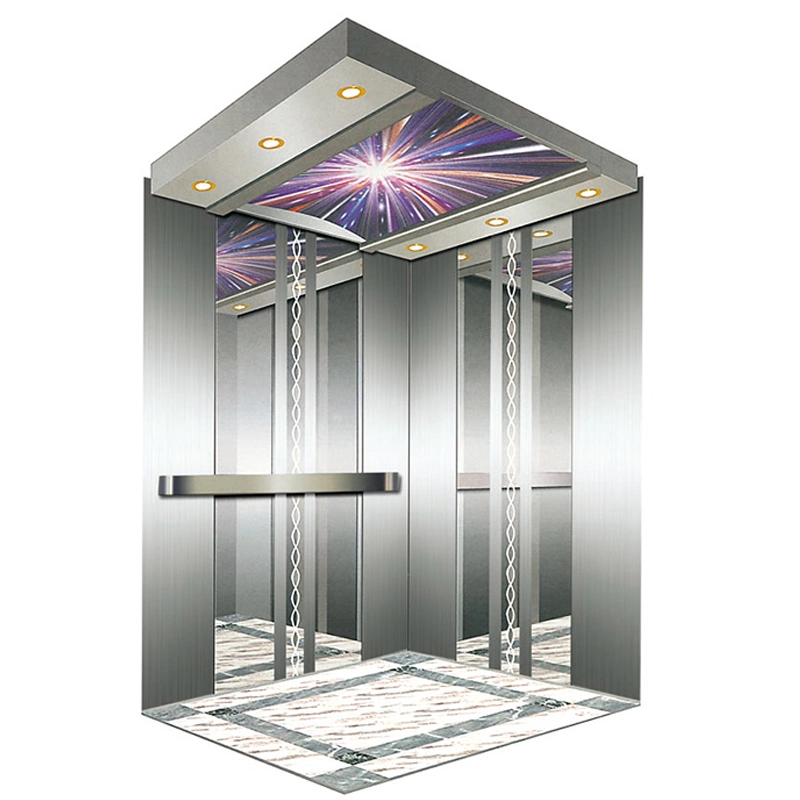

Luxury Residential Cheap Passenger Home Lift Elevator with Stainless Steel Cabin
Small machine room passenger lift1. Permanent magnet synchronous gearless motor2. Energy feedback technology3. LED car lighting and LED automatic lightingElevator technical parameter table(MR elevator) ModelCapacityPersonsSpeedCabinNet opening sizeS......
Send Inquiry
Product Description
Small machine room passenger lift
1. Permanent magnet synchronous gearless motor
2. Energy feedback technology
3. LED car lighting and LED automatic lighting
Elevator technical parameter table(MR elevator)
Machine roomless passenger lift
1. It effectively utilizes the space
2. It saves the building cost
3. It brings about infinite freedom to the architectural design
Elevator technical parameter table(MRL elevator)
1. Permanent magnet synchronous gearless motor
2. Energy feedback technology
3. LED car lighting and LED automatic lighting
Elevator technical parameter table(MR elevator)
| Model | Capacity | Persons | Speed | Cabin | Net opening size | Shaft | Overhead Height | Pit Depth | |||
| CW | CD | JJ | HH | HW | HD | OH | PH | ||||
| TKJ450/0.63 | 450 | 6 | 0.63 | 1100 | 1100 | 700 | 2100 | 1600 | 1700 | 4400 | 1400 |
| TKJ450/1.0 | 1 | 4500 | 1400 | ||||||||
| TKJ450/1.5 | 1.5 | 4600 | 1500 | ||||||||
| TKJ630/0.63 | 630 | 8 | 0.63 | 1400 | 1100 | 800 | 2100 | 1900 | 1700 | 4400 | 1400 |
| TKJ630/1.0 | 1 | 4500 | 1400 | ||||||||
| TKJ630/1.5 | 1.5 | 4600 | 1500 | ||||||||
| TKJ630/1.75 | 1.75 | 4700 | 1600 | ||||||||
| TKJ800/1.0 | 800 | 10 | 1 | 1400 | 1350 | 800 | 2100 | 1900 | 1950 | 4500 | 1400 |
| TKJ800/1.5 | 1.5 | 4600 | 1500 | ||||||||
| TKJ800/1.75 | 1.75 | 4700 | 1600 | ||||||||
| TKJ800/2.0 | 2 | 2000 | 2150 | 4900 | 1700 | ||||||
| TKJ800/2.5 | 2.5 | 5100 | 1900 | ||||||||
| TKJ1000/1.0 | 1000 | 13 | 1 | 1600 | 1400 | 900 | 2100 | 2100 | 2000 | 4500 | 1400 |
| TKJ1000/1.5 | 1.5 | 4600 | 1500 | ||||||||
| TKJ1000/1.75 | 1.75 | 4700 | 1600 | ||||||||
| TKJ1000/2.0 | 2 | 2200 | 2200 | 4900 | 1700 | ||||||
| TKJ1000/2.5 | 2.5 | 5100 | 1900 | ||||||||
| TKJ1250/1.0 | 1250 | 16 | 1 | 1900 | 1500 | 1100 | 2100 | 2400 | 2200 | 4500 | 1400 |
| TKJ1250/1.5 | 1.5 | 4600 | 1500 | ||||||||
| TKJ1250/1.75 | 1.75 | 4700 | 1600 | ||||||||
| TKJ1250/2.0 | 2 | 2500 | 2400 | 4900 | 1700 | ||||||
| TKJ1250/2.5 | 2.5 | 5100 | 1900 | ||||||||
| TKJ1600/1.0 | 1600 | 21 | 1 | 2000 | 1750 | 1100 | 2100 | 2500 | 2450 | 4500 | 1400 |
| TKJ1250/1.5 | 1.5 | 4600 | 1500 | ||||||||
| TKJ1250/1.75 | 1.75 | 4700 | 1600 | ||||||||
| TKJ1250/2.0 | 2 | 2600 | 2650 | 4900 | 1700 | ||||||
| TKJ1250/2.5 | 2.5 | 5100 | 1900 | ||||||||
Machine roomless passenger lift
1. It effectively utilizes the space
2. It saves the building cost
3. It brings about infinite freedom to the architectural design
Elevator technical parameter table(MRL elevator)
| Model | Capacity | Persons | Speed | Cabin | Net opening size | Shaft | Overhead Height | Pit Depth | |||
| CW | CD | JJ | HH | HW | HD | OH | PH | ||||
| TKJ450/0.63 | 450 | 6 | 0.63 | 1100 | 1100 | 700 | 2100 | 2000 | 1700 | 4100 | 1700 |
| TKJ450/1.0 | 1 | 4100 | 1700 | ||||||||
| TKJ450/1.5 | 1.5 | 4200 | 1800 | ||||||||
| TKJ630/1.0 | 630 | 8 | 1 | 1400 | 1100 | 800 | 2100 | 2300 | 1700 | 4100 | 1700 |
| TKJ630/1.5 | 1.5 | 4200 | 1800 | ||||||||
| TKJ630/1.75 | 1.75 | 4200 | 1800 | ||||||||
| TKJ800/1.0 | 800 | 10 | 1 | 1400 | 1350 | 800 | 2100 | 2300 | 1800 | 4100 | 1700 |
| TKJ800/1.5 | 1.5 | 4200 | 1800 | ||||||||
| TKJ800/1.75 | 1.75 | 4200 | 1800 | ||||||||
| TKJ1000/1.0 | 1000 | 13 | 1 | 1600 | 1400 | 900 | 2100 | 2500 | 1900 | 4100 | 1700 |
| TKJ1000/1.5 | 1.5 | 4200 | 1800 | ||||||||
| TKJ1000/1.75 | 1.75 | 4200 | 1800 | ||||||||
| TKJ1250/1.0 | 1250 | 16 | 1 | 1900 | 1500 | 1100 | 2100 | 2900 | 2000 | 4100 | 1700 |
| TKJ1250/1.5 | 1.5 | 4200 | 1800 | ||||||||
| TKJ1250/1.75 | 1.75 | 4200 | 1800 | ||||||||
| TKJ1600/1.0 | 1600 | 21 | 1 | 2000 | 1750 | 1100 | 2100 | 3000 | 2400 | 4500 | 1700 |
| TKJ1250/1.5 | 1.5 | 4600 | 1800 | ||||||||
| TKJ1250/1.75 | 1.75 | 4600 | 1800 | ||||||||
