Machine Room Low Noise Asia FUJI Passenger Elevator

Product Description

Machine Room Low Noise Asia FUJI Passenger Elevator

Passenger Elevator( MR)

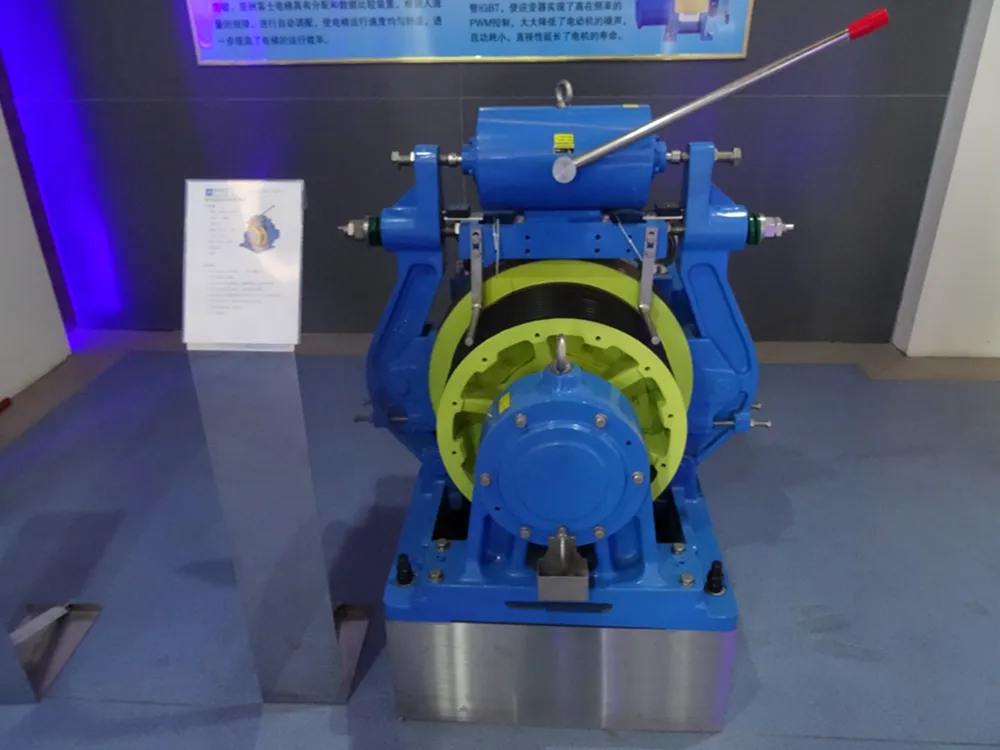

The launch of Asia FUJI small computer room elevator has led the elevator industry to move toward small machine room equipment configuration.Small machine room elevator can meet both passenger and freight transportation; they are suitable for office, hotel,residential building and skyscraper.Asia FUJI small machine room elevator is driven by permanent magnet gearless traction machine to ensure safe and reliable operation,lower noise and better performance.
Small machine room, space-saving, lower the cost, high efficiency
The use of small machine room elevator technology not only speeds up the construction progress and ensures the smooth operation of the construction project, but also easy to replace the traction machine when it needs to be modified, while the traditional drive system cannot meet such a convenient transformation.
Machine Room Low Noise Asia FUJI Passenger Elevator

Small machine room passenger elevator parameters

Capacity (Kg)	Person	Speed (m/s)	Entrance (mm)	Clear car dimension (mm)	Caroutstide dimension (mm)	Clear hoistway dimension (mm)	Machine room dimension (mm)	Pit depth mm	Overhead height mm	Pit reaction load (KN)		Machine room reaction load (KN)		Rated power (KN)	Power supply capacity		Lead-in wire
Q	NO.	V	OP	CWXCD	SWXSD	HWXHD	MWXMDXMH	PD	OH	R1	R2	R3	R4	KW	KVA		MM²
450	6	1.0	700	1200x1100	1252x1266	1800x1800	1800x1800x2200	1500	4400	50	40	20	8	3	3.6		4
		1.5						1600	4500					4.8	5.8		4
630	8	1.0	800	1400x1100	1452x1266	2000x1800	2000x1800x2200	1500	4400	68	54	24	10	4.3	5.2		4
		1.5						1600	4500					6.8	8.2		6
800	10	1.0	800	1400x1350	1452x1516	2000x2050	2000x2050x2200	1500	4400	76	60	28	12	5.4	6.5		6
		1.5						1600	4500					8.6	10.3		6
		1.75						1700	4600					9.6	11.5		6
		2.0						1800	4700					11	13.2		6
1000	13	1.0	900	1600x1450	1652x1616	2200x2200	2200x2200x2200	1500	4400	90	72	32	15	6.4	7.7		6
		1.5						1600	4500					10.7	12.8		6
		1.75						1700	4600					11.7	14		6
		2.0						1800	4700					13.4	16.1		10
		2.5						2000	4900					17	20.4		10
		4.0						3800	5900					27.7	31.5		10
1250	16	1.0	1000	1800x1550	1852x1716	2400x2300	2400x2300x2200	1500	4400	105	80	36	18	8.5	10.2		6
		1.5						1600	4500					13.5		6.2	10
		1.75						1700	4600					14.8		7.8	10
		2.0						1800	4700					17	20.4		10
		2.5						2000	4900					22	26.4		10
		4.0						3800	5900					34.6	39.6		10
1350	18	1.0	1100	1900x1600	1952x1766	2500x2300	2500x2300x2200	1500	4400	115	90	40	20	9.3	11.2		6
		1.5						1600	4500					14.9	17.9		10
		1.75						1700	4600					16.3	19.6		10
		2.0						1800	4700					18.7	22.4		10
		2.5						2000	4900					23.4	28.1		10
		4.0						3800	5900					36.8	44.2		10
1600	21	1.0	1200	2000x1700	2052x1866	2600x2400	2600x2400x2200	1500	4400	136	105	48	26	11	13.2		6
		1.5						1600	4500					17.5	21		10
		1.75						1700	4600					19	22.8		10
		2.0						1800	4700					22	26.4		10
		2.5						2000	4900					27.5	33		10
		4.0						3800	5900					34.2	41		10

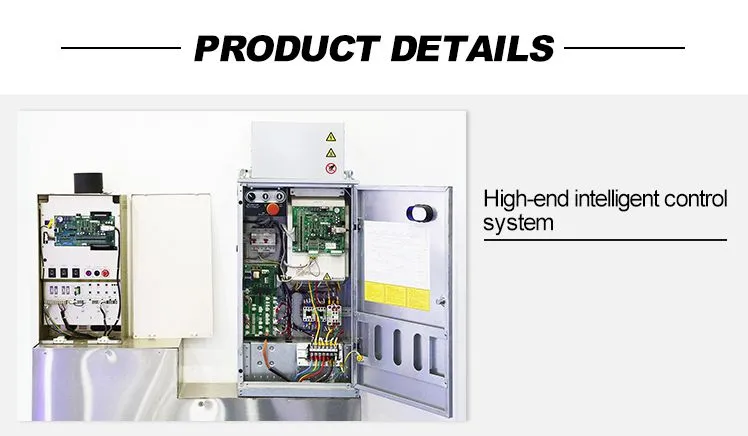

Asia FUJI Elevator, adopting VVVF control technology and permanent magnet synchronous motor technology, saving energy and protecting the environment, without occupying space, it is a competitive home elevator product that possess different style, multi-functional and so on.
Asia FUJI Elevator become the best choice for the renovation of old buildings due to small in size, high in efficiency, light in weight, easy to control of the permanent magnet synchronous traction machine.

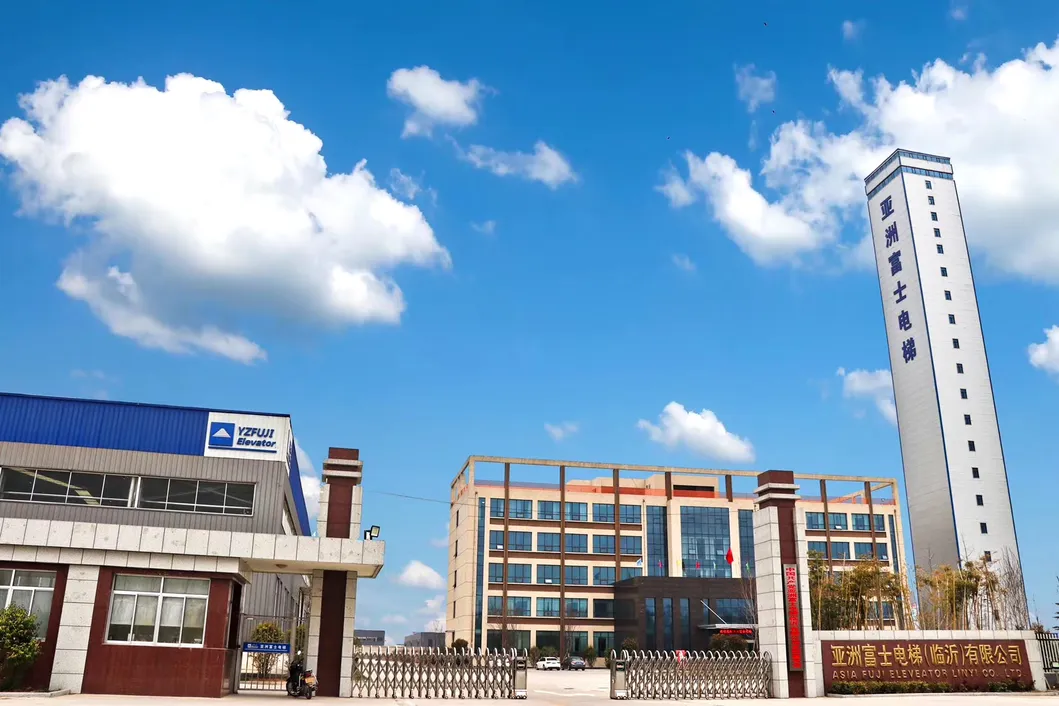

Asia Fuji Elevator (Linyi) Co., Ltd is a joint-stock enterprise integrating R & D, design, production, sales, installation and maintenance of all kinds of elevators. Located in Pingyi County, Linyi City, Shandong Province, it is a key construction project attracting investment in Linyi City in 2015, with a total area of 300 Mu and a total investment of 1.3 billion yuan. Products include passenger elevator, sightseeing elevator, household elevator, business elevator, medical elevator, villa elevator, cargo elevator, car elevator, escalator and sidewalk. At present, the company has won the honors of "national quality inspection stable and qualified products", "national quality integrity excellent enterprise" and "high tech enterprise", and has won 11 technical patents in the elevator industry.

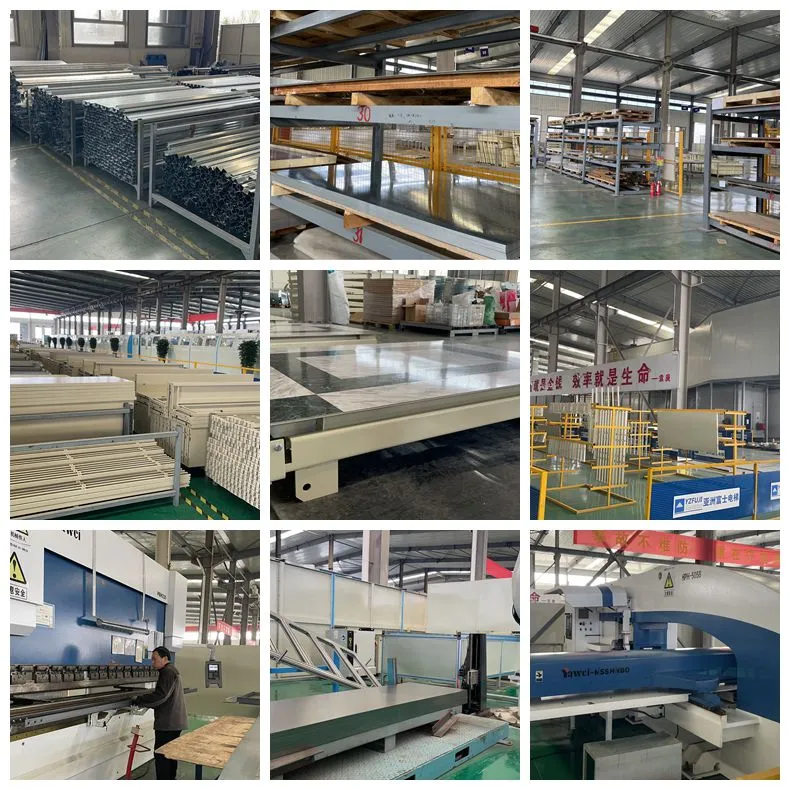

The intelligent production line adopts ABB6700 series products, and adopts 360 rotation type, from feeding to bending, to enter the roll line turnover work, and at the same time, enters the stiffener, head, gluing and arc welding process. This production process is composed of a single direction private service control motor platform and a double head spot welding machine; it has high stability and efficiency, can achieve the best manufacturing accuracy.

Machine Room Low Noise Asia FUJI Passenger Elevator

Q1: Are you a trading company or a manufacturer?

A1: We are manufacturer. We have our own factory and trading company.

Q2: How can I order?
A2: Please send enquiry from Made in China, Click "Contact Now". Please let me know the specification of elevator.

Q3: Can you cheaper? Another company lower than you.
A4: The quality of the product determines the price. Just like the BMW and other cars, We use high quality materials and advanced technology. We provide you with quality products and best services. Please know that the value for money is good.

Q4: Can I customize the elevator?
A4: Of course, please tell me your requirements and parameters or drawings, we can also design drawings for you to confirm.

Q5: How about warranty?

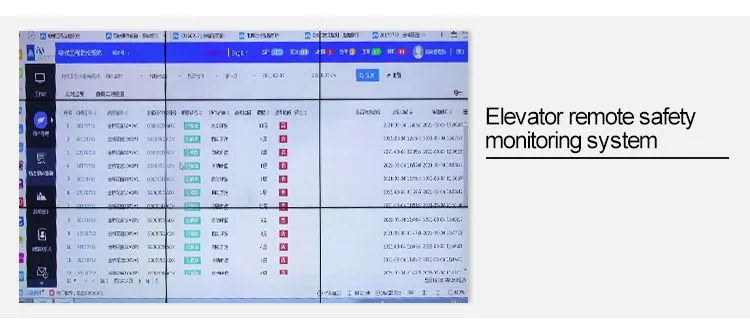

A5: Every unit we can follow by our GPS system, if any problem we can tell you how to fix it, and there are 18 month warranty time, if any problem we will send you free spare parts to change.

Q6: Payment and Price terms?
A6: Mainly according to your requirements, but we recommend using L/C at sight or 30% T/T In Advance, balance before shipping.

Q7: What is your delivery time?
A7: Our delivery time is based on the quantity of your order.

Q8: What is your company address?
A8: Shanghai FUJI Elevator Co., Ltd. is located at No. 328, Ruiqing Road, Pudong New Area, Shanghai, China. Warmly welcome you to visit our company.
