China Mirror Etching Stainless Steel Passenger Without Machine Room for Hotel

Product Description

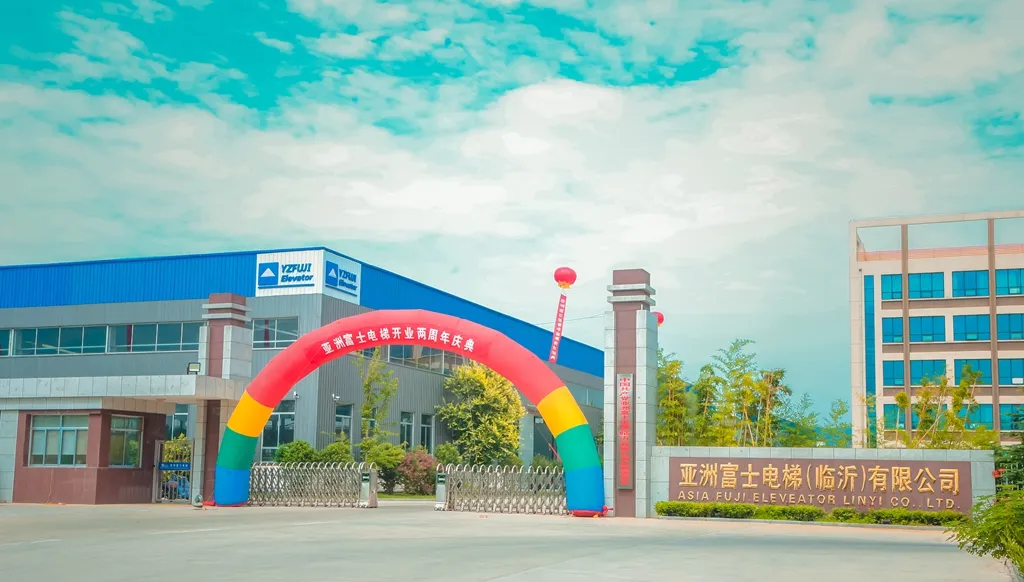

Factory :
Asia Fuji Elevator (Linyi) Co., Ltd. is a key construction project of Linyi City in 2015, with a total area of 300 acres and a total investment of 1.3 billion yuan. Our company is a joint-stock enterprise integrating R&D, design, production, sales and installation and maintenance of various elevators.

Our products cover passenger elevators, sightseeing elevators, home elevators, commercial elevators, medical elevators, villa elevators, freight elevators, car elevators, escalators, and sidewalks. We also could do customization products with customers.

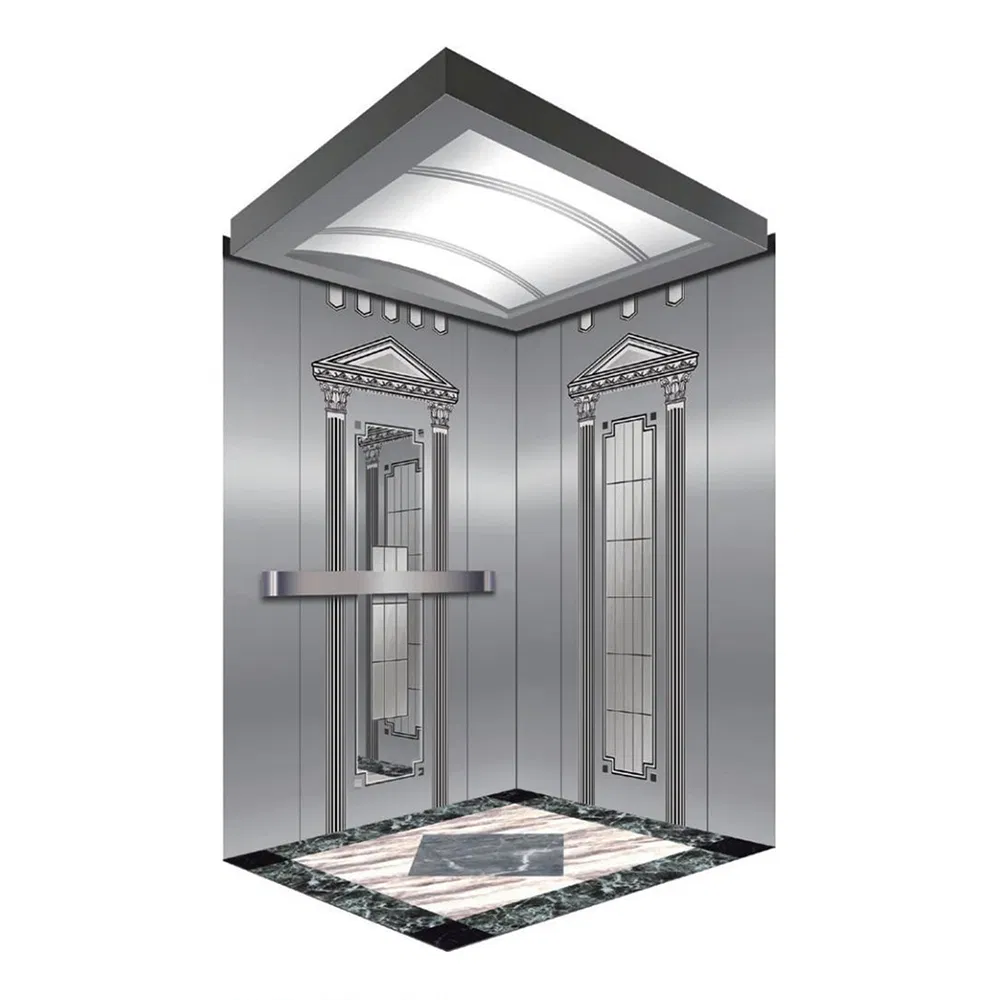

Mirror Etching Stainless Steel Passenger Without Machine Room for Hotel

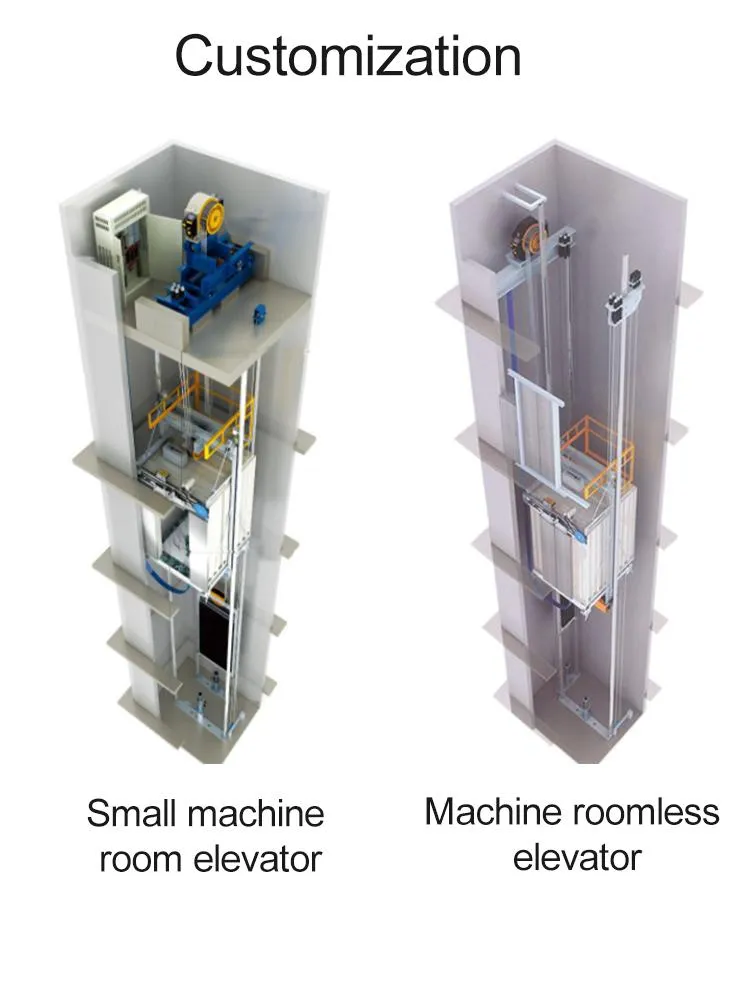

with small machine room Passenger Elevator Lift

Our company has all the necessary certifications for making elevators, has been awarded the honorary certificate of "National Quality Inspection and Stable Qualified Product," "National Excellent Enterprise of Quality and Integrity," and "High and New Technology Enterprise". We have been granted 11 technical patents in the elevator industry, is a leading elevator manufacturer in China.

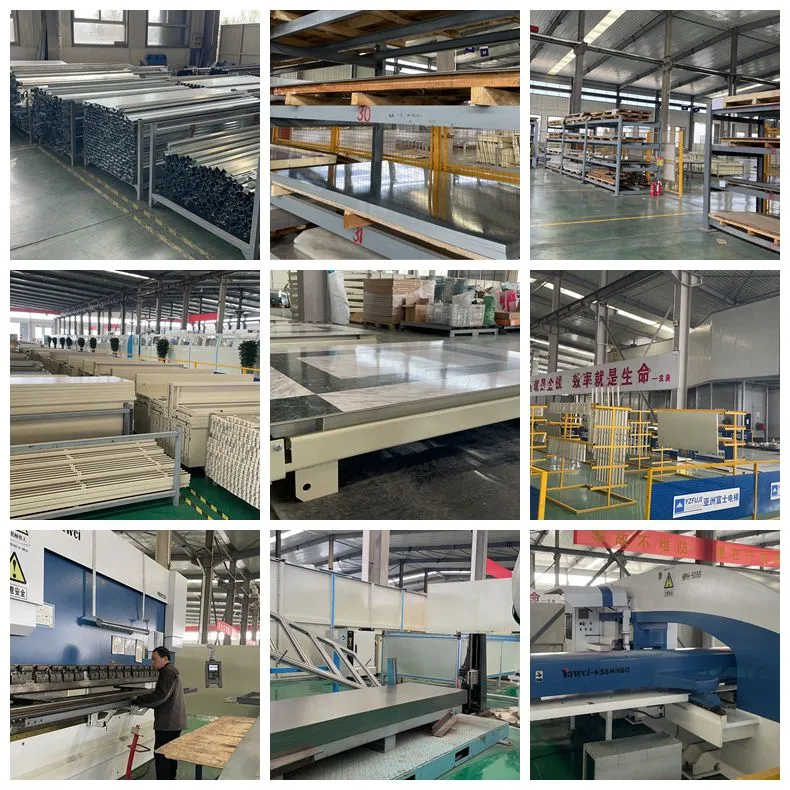

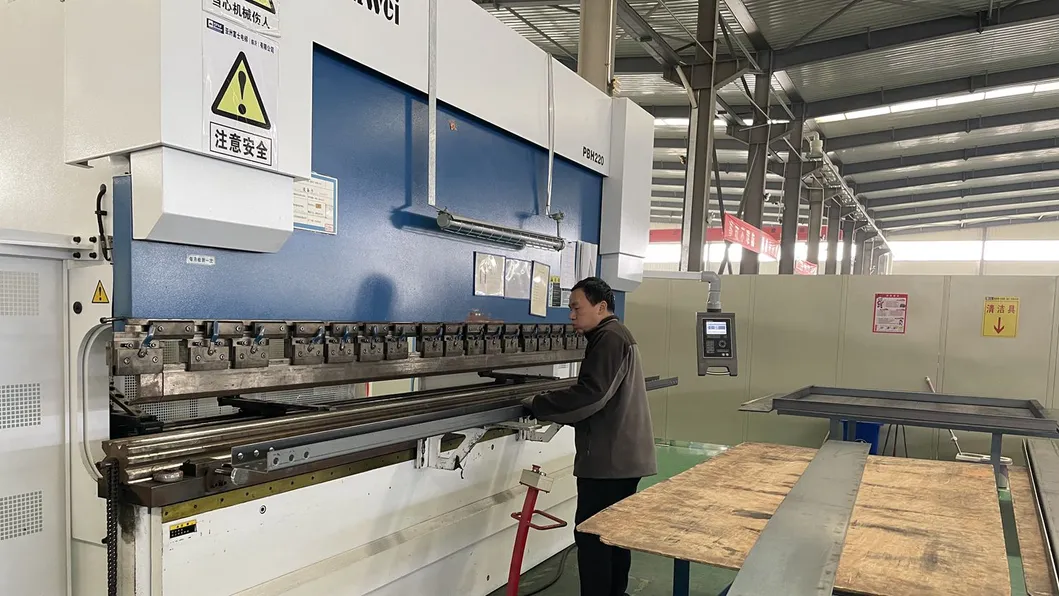

The intelligent production line adopts ABB6700 series robots. It adopts 360 rotation type, from feeding to bending, to enter the roll line turnover work, and at the same time, enters the stiffener, head, gluing, and arc welding process. This production process comprises a single-direction servo motor platform and a double head spot welding machine; it has excellent stability and efficiency and can achieve the best manufacturing accuracy. We also built 109m test tower test speed up to 10m/s. Everything we do is want to ensure the reliable quality.

Our company vision is 'Better future comes from quality, Great dream comes from service!

Mirror Etching Stainless Steel Passenger Without Machine Room for Hotel

Mirror Etching Stainless Steel Passenger Without Machine Room for Hotel

Capacity (Kg)	Person	Speed (m/s)	Entrance(mm)	Clear car dimension (mm)	Caroutstide dimension (mm)	Clear hoistway dimension (mm)	Machine room dimension (mm)	Pit depth (mm)	Overhead Height (mm)	Pit reaction load (KN)		Machine room reaction load(KN)		Rated power (KW)	Power supply capacity	Lead-in wire
Q	NO.	V	OP	CWXCD	SWXSD	HWXHD	MWXMDXMH	PD	OH	R1	R2	R3	R4	KW	KVA	MM2
450	6	1.0	700	1200x1100	1252x1266	1800x1800	1800x1800x2200	1500	4400	50	40	20	8	3	3.6	4
450	6	1.5	700	1200x1100	1252x1266	1800x1800	1800x1800x2200	1600	4500	50	40	20	8	4.8	5.8	4
630	8	1.0	800	1400x1100	1452x1266	2000x1800	2000x1800x2200	1500	4400	68	54	24	10	4.3	5.2	4
630	8	1.5	800	1400x1100	1452x1266	2000x1800	2000x1800x2200	1600	4500	68	54	24	10	6.8	8.2	6
800	10	1.0	800	1400x1350	1452x1516	2000x2050	2000x2050x2200	1500	4400	76	60	28	12	5.4	6.5	6
		1.5						1600	4500					8.6	10.3	6
		1.75						1700	4600					9.6	11.5	6
		2.0						1800	4700					11	13.2	6
1000	13	1.0	900	1600x1450	1652x1616	2200x2200	2200x2200x2200	1500	4400	90	72	32	15	6.4	7.7	6
		1.5						1600	4500					10.7	12.8	6
		1.75						1700	4600					11.7	14	6
		2.0						1800	4700					13.4	16.1	10
		2.5						2000	4900					17	20.4	10
		4.0						3800	5900					27.7	31.5	10
1250	16	1.0	1000	1800x1550	1852x1716	2400x2300	2400x2300x2200	1500	4400	105	80	36	18	8.5	10.2	6
		1.5						1600	4500					13.5	6.2	10
		1.75						1700	4600					14.8	7.8	10
		2.0						1800	4700					17	20.4	10
		2.5						2000	4900					22	26.4	10
		4.0						3800	5900					34.6	39.6	10
1350	18	1.0	1100	1900x1600	1952x1766	2500x2300	2500x2300x2200	1500	4400	115	90	40	20	9.3	11.2	6
		1.5						1600	4500					14.9	17.9	10
		1.75						1700	4600					16.3	19.6	10
		2.0						1800	4700					18.7	22.4	10
		2.5						2000	4900					23.4	28.1	10
		4.0						3800	5900					36.8	44.2	10
1600	21	1.0	1200	2000x1700	2052x1866	2600x2400	2600x2400x2200	1500	4400	136	105	48	26	11	13.2	6
		1.5						1600	4500					17.5	21	10
		1.75						1700	4600					19	22.8	10
		2.0						1800	4700					22	26.4	10
		2.5						2000	4900					27.5	33	10
		4.0						3800	5900					34.2	41	10
