Side- Opening 2 Panels Landing for Elevator Lift Electric Door Opener
Side-Opening 2 Panels Landing For Elevator Lift Electric Door OpenerSide-opening 2 Panels LandingFEL-161 Landing door lockSellf-closing methods: Using weight drop self-closing mode, the weight drop and the guide rodplaced inside of the door panelsUnlocking methods: using door panel unlockingPL600700......
Send Inquiry
Product Description

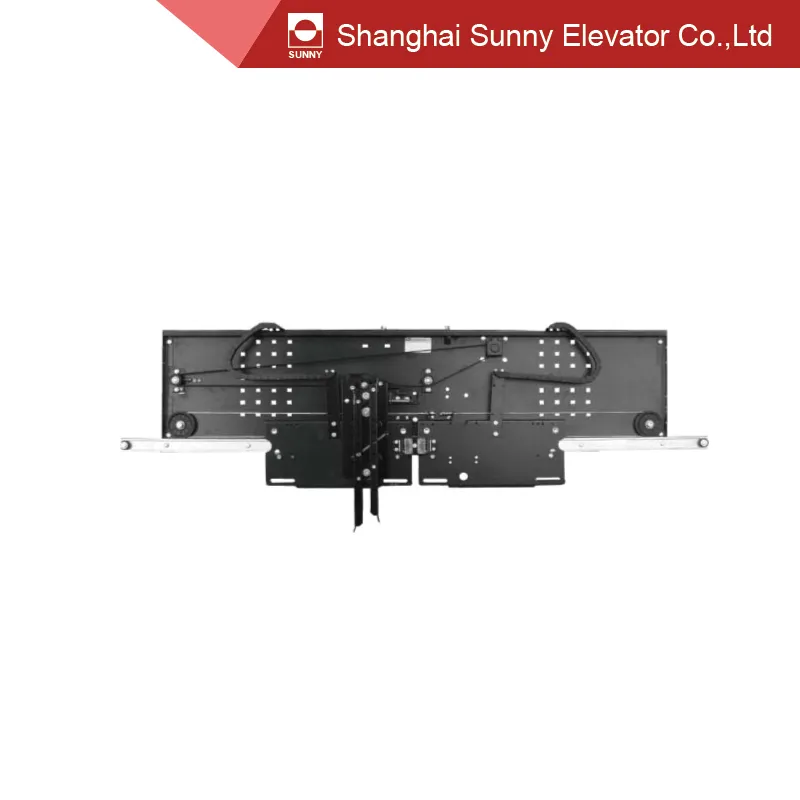

Side-Opening 2 Panels Landing For Elevator Lift Electric Door Opener
Side-opening 2 Panels Landing
FEL-161 Landing door lock
Sellf-closing methods: Using weight drop self-closing mode, the weight drop and the guide rod
placed inside of the door panels
Unlocking methods: using door panel unlocking
| PL | 600 | 700 | 800 | 900 | 1000 | 1100 | 1200 | 1300 | 1400 | 1500 | 1600 | 1700 | 1800 |
| A | 1064 | 1214 | 1364 | 1514 | 1664 | 1814 | 1964 | 2114 | 2264 | 2414 | 2564 | 2714 | 2864 |
| B | 1000 | 1150 | 1300 | 1450 | 1600 | 1750 | 1900 | 2050 | 2200 | 2350 | 2500 | 2650 | 2800 |
| L | 185 | 235 | 285 | 335 | 385 | 435 | 485 | 535 | 585 | 635 | 685 | 735 | 785 |

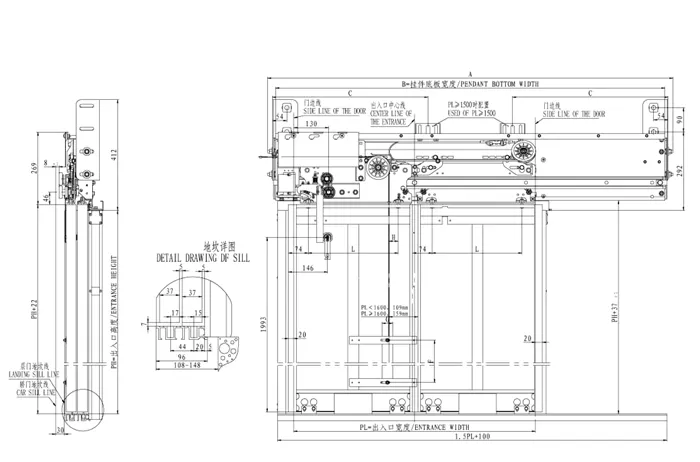

Overall dimensions
About us
Why choose us?
Shanghai Sunny Elevator Co., Ltd, founded in 1992, is a 28-year professional manufacturer specializing in designing and producting Opto-Electro-Mechanical products.
Sunny Elevator has started import and export since 2012.
We have experience in exporting all kinds of elevator parts and complete elevator to 80 countries all over the world.
