China Spacious Luxurious CE Approved Passenger Elevator Lift Price

Product Description

Features
1 Gearless Traction Machine
2 Lower construction costs
3 Impressive energy savings
4 High-quality interior designs

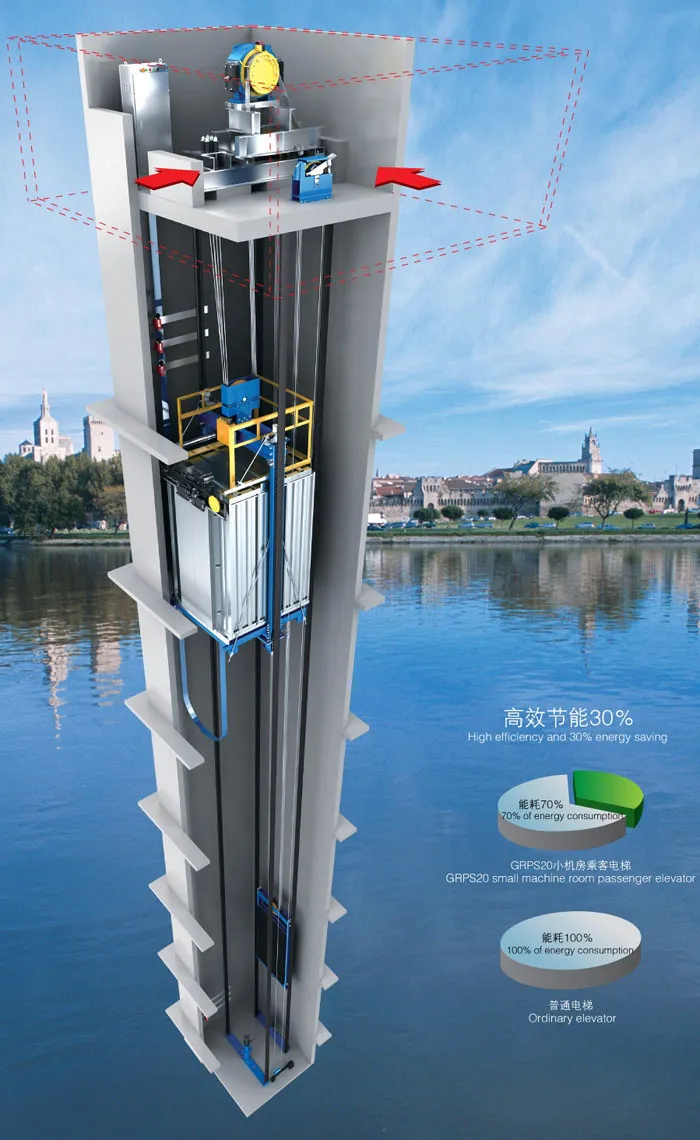

Less space, faster construction
The machine room is simply an extension of the elevator shaft, making it easier and more cost-efficient to install. The compact motor can even be lifted inside the elevator shaft.
Impressive energy savings
The elevators consume less energy and result in lower thermal losses than traditional
machines.

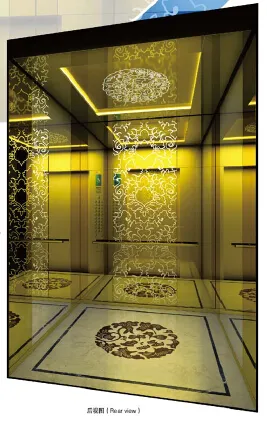

Attractive interior design
Our elevator design concepts are the work of renowned professionals and designers, who unite attractive interiors with practical durability.

Spacious Luxurious CE Approved Passenger Elevator Lift Price

Spacious Luxurious CE Approved Passenger Elevator Lift Price

Persons	Rated Capacity (KG)	Rated Speed (m/s)	Net size of car(mm)	Net size of door(mm)	Hoistway size (mm)			Machine room size(mm)		Max traveling height (m)
Persons	Rated Capacity (KG)	Rated Speed (m/s)	C.WxC.D	D.WxD.H 2p center opening	H.WxH.D	HR.H	P.H	MR.WxMR.D	MR.H	Max traveling height (m)
6	400	1.0	1100x1000	700x2100	1700x1620	4500	1500	1700x1620	2900	45
8	630	1.0	1400x1100	800x2100	2000x1720	4500	1500	2000x1720	2900	45
8	630	1.6/1.75	1400x1100	800x2100	2000x1720	4600	1700	2000x1720	2900	96
10	800	1.0	1400x1350	800x2100	2000x1970	4500	1500	2000x1970	2900	45
		1.6/1.75				4600	1700			96
		2.0				4900	1800			120
		2.5				5100	2000			150
13	1000	1.0	1600x1500	900x2100	2200x2120	4500	1500	2200x2120	2900	45
		1.6/1.75				4600	1700			96
		2.0				4900	1800			120
		2.5				5100	2000			150
		3.0				5600	2600			150
		3.5				5950	3100			180
		4.0				6350	3850			180
15	1150	1.0	1700x1500	1000x2100	2300x2120	4500	1500	2300x2120	2900	45
		1.6/1.75				4600	1700			96
		2.0				4900	1800			120
		2.5				5100	2000			150
		3.0				5600	2600			150
		3.5				5950	3100			180
		4.0				6350	3850			180
16	1250	1.0	1950x1400	1100x2100	2600x2020	4500	1500	2300x2120	2900	45
		1.6/1.75				4600	1700			96
		2.0				4900	1800			120
		2.5				5100	2000			150
		3.0				5600	2600			150
		3.5				5950	3100			180
		4.0				6350	3850			180
18	1350	1.0	1950x1550	1100x2100	2600x2170	4500	1500	2600x2170	2900	45
		1.6/1.75				4600	1700			96
		2.0				4900	1800			120
		2.5				5100	2000			150
		3.0				5600	2600			150
		3.5				5950	3100			180
		4.0				6350	3850			180
21	1600	1.0	1950x1750	1100x2100	2600x2370	4500	1500	2600x2370	2900	45
		1.6/1.75				4600	1700			96
		2.0				4900	1800			120
		2.5				5100	2000			150
		3.0				5600	2600			150
		3.5				5950	3100			180
		4.0				6350	3850			180
