China 6-16 Person Observation Lift Passenger Elevator Sightseeing Glass Elevator Lift

Product Description

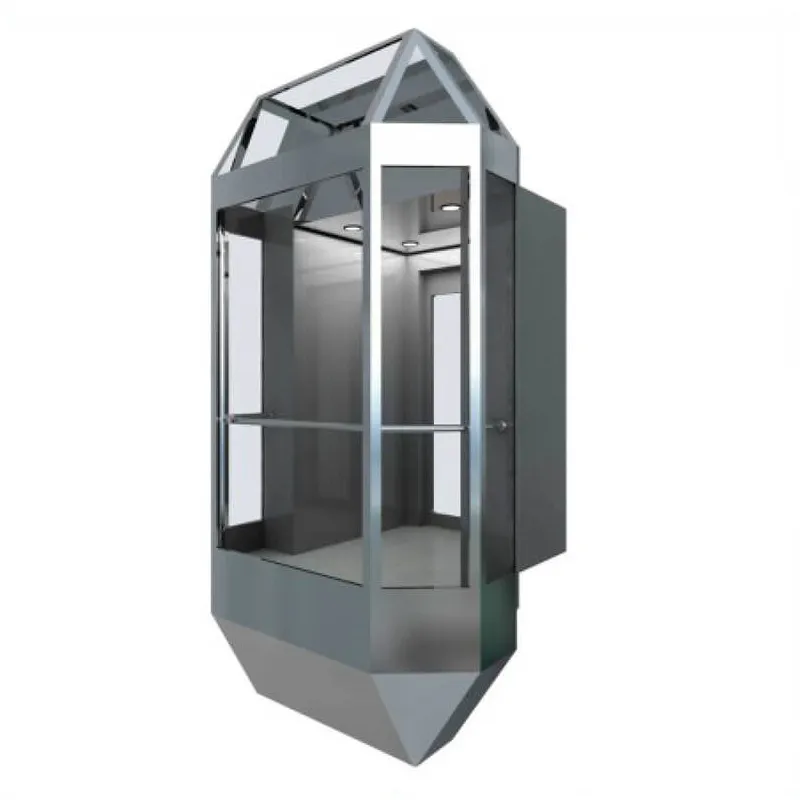

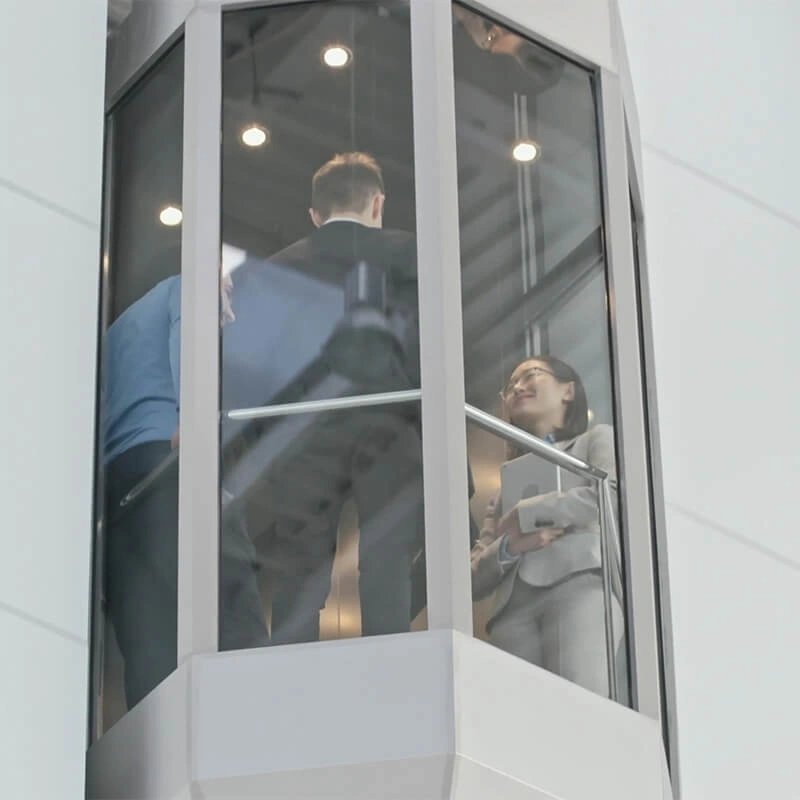

6-16 Person Observation Lift Passenger Elevator Sightseeing Glass Elevator Lift

CONAI panorama lift series apply the open and deluxe decoration style. It is for super-strong visual aesthetics, the elaborate material, the consummate manufacture craft technology. The excellent sight-seeing lift not only harmoniously combines with your high-grade building, but also adds glamour to each other.

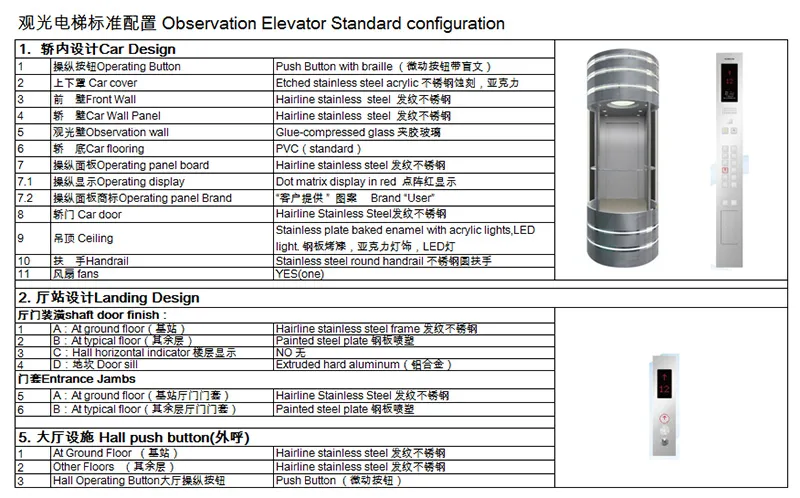

Observation Elevator Configuration Table
6-16 Person Observation Lift Passenger Elevator Sightseeing Glass Elevator Lift

Note: Regarding specific data, please refer to the contract.

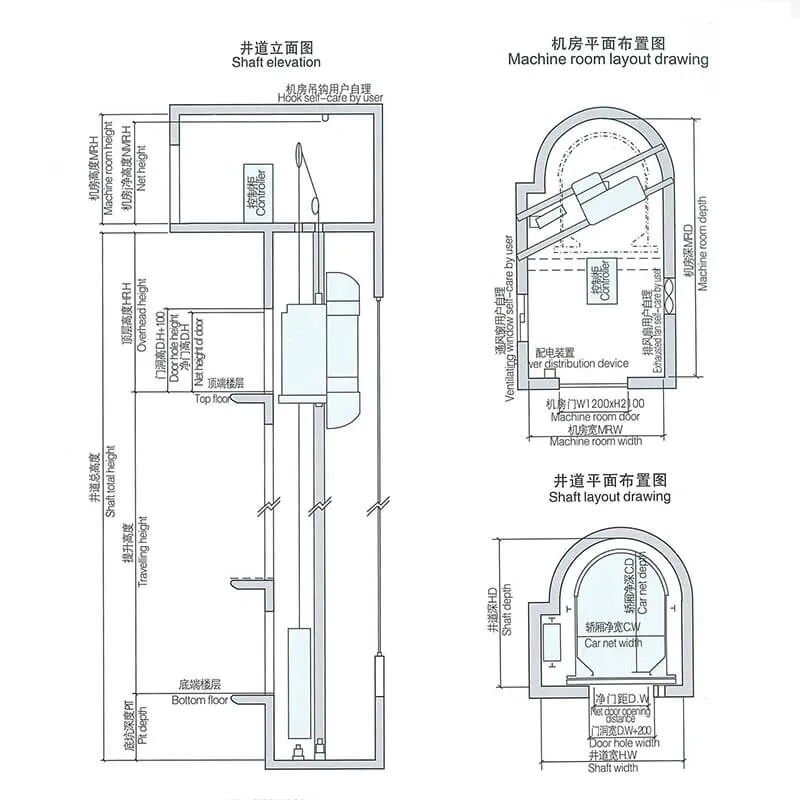

Shaft Layout

NO.	Rated capa city (KG/Person)	Speed (m/s)	Net size of car	Net door size	Net size hoistway	Pit depth	Overhead height	Machine room size	Opening mode
1	630(8)	1.0/1.5/1.75	120016002400	800*2100	2300*2200	1800	4800	300032002200	center opening
2	800(10)	1.0/1.5/1.75	140016002400	800*2100	2400*2200	2000	5000	300035002400
3	1000(13)	1.0/1.5/1.75	140018002400	900*2100	2450*2400	2000	5000	300035002400
4	1250(16)	1.0/1.5/1.75	150020002400	1000*2100	2600*2650	2000	5000	350040002400
5	1600(21)	1.0/1.5/1.75	160023002400	1100*2100	2700*2950	2300	5000	350040002400

Note: Regarding specific size, please take the construction layout drawing while signing the construct as criterion.

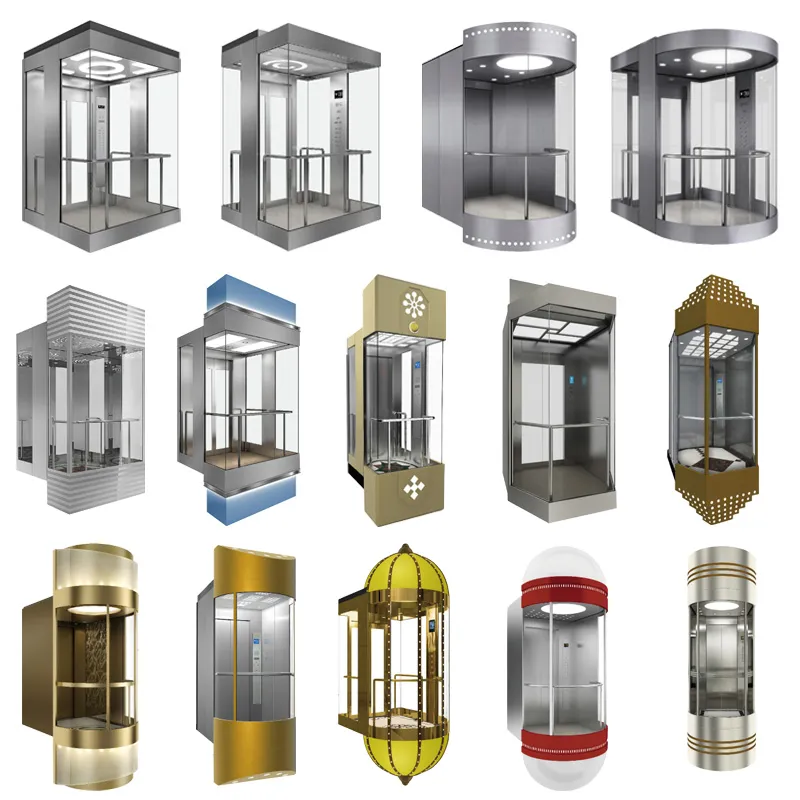

Observation Lift Carbinet
6-16 Person Observation Lift Passenger Elevator Sightseeing Glass Elevator Lift
