Cheap Glass Passenger Panoramic Lift Observation Elevator Sightseeing Elevator Lifts

Product Description

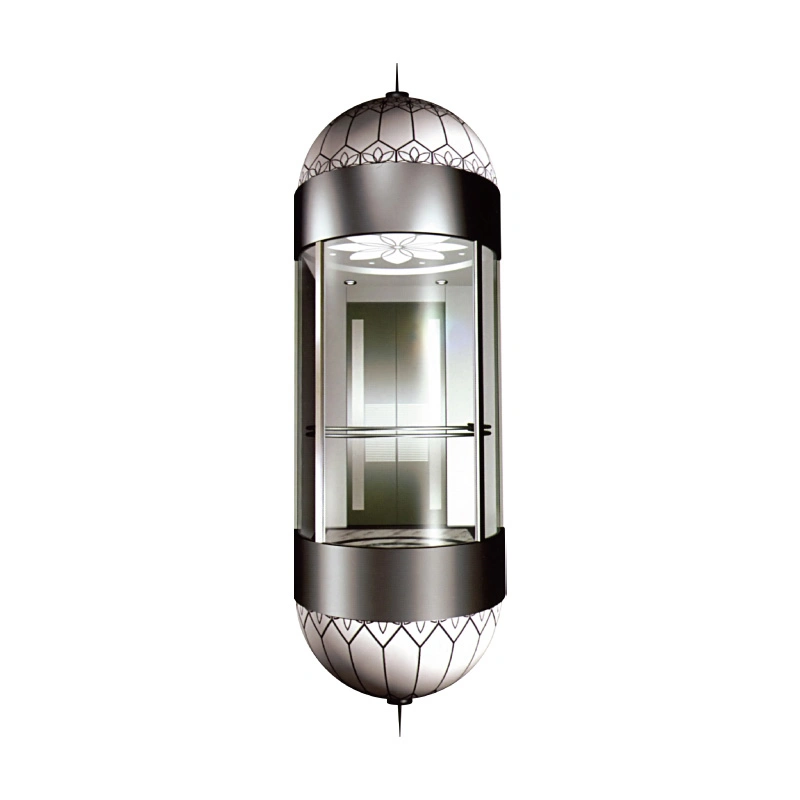

Cheap Glass Passenger Panoramic Lift Observation Elevator Sightseeing Elevator Lifts

CONAI panorama lift series apply the open and deluxe decoration style. It is for super-strong visual aesthetics, the elaborate material, the consummate manufacture craft technology. The excellent sight-seeing lift not only harmoniously combines with your high-grade building, but also adds glamour to each other.

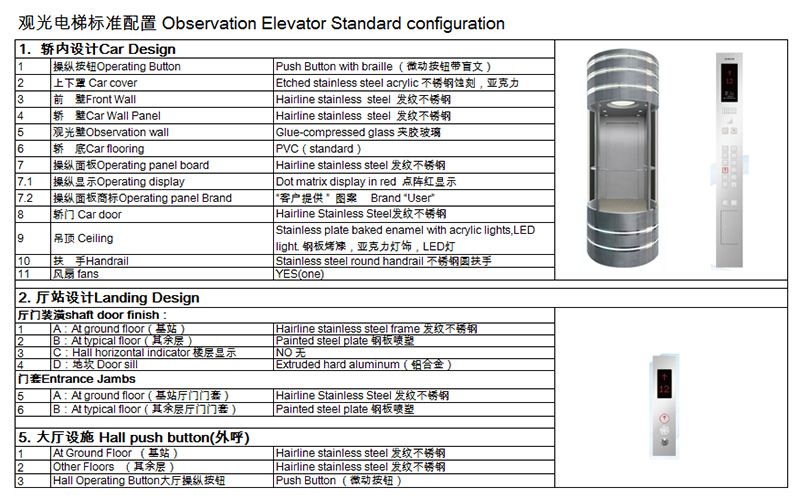

Observation Elevator Configuration Table
Cheap Glass Passenger Panoramic Lift Observation Elevator Sightseeing Elevator Lifts

Note: Regarding specific data, please refer to the contract.

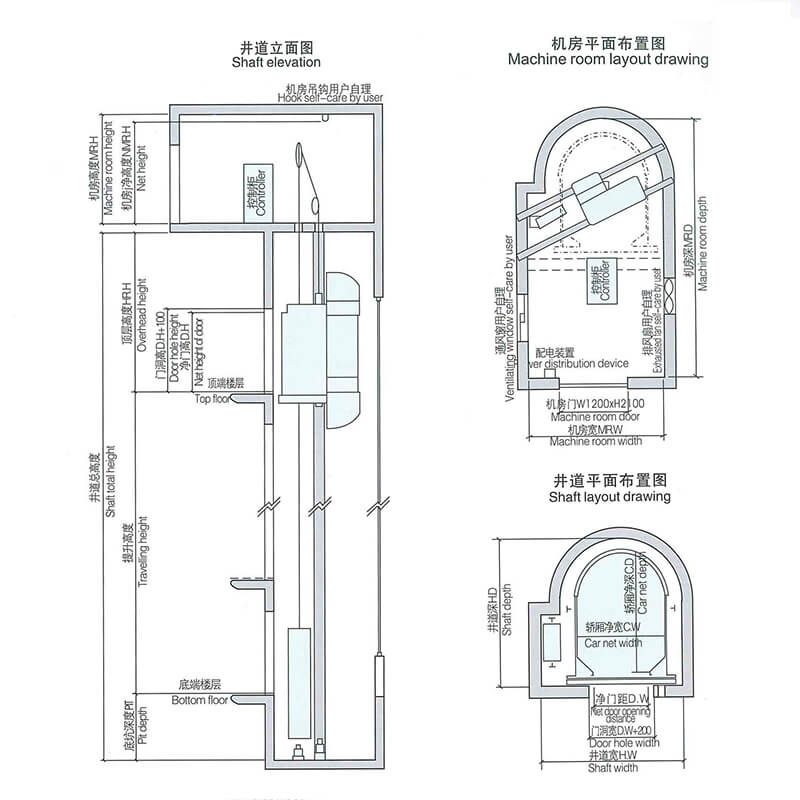

Shaft Layout

NO.	Rated capa city (KG/Person)	Speed (m/s)	Net size of car	Net door size	Net size hoistway	Pit depth	Overhead height	Machine room size	Opening mode
1	630(8)	1.0/1.5/1.75	120016002400	800*2100	2300*2200	1800	4800	300032002200	center opening
2	800(10)	1.0/1.5/1.75	140016002400	800*2100	2400*2200	2000	5000	300035002400
3	1000(13)	1.0/1.5/1.75	140018002400	900*2100	2450*2400	2000	5000	300035002400
4	1250(16)	1.0/1.5/1.75	150020002400	1000*2100	2600*2650	2000	5000	350040002400
5	1600(21)	1.0/1.5/1.75	160023002400	1100*2100	2700*2950	2300	5000	350040002400

Note: Regarding specific size, please take the construction layout drawing while signing the construct as criterion.

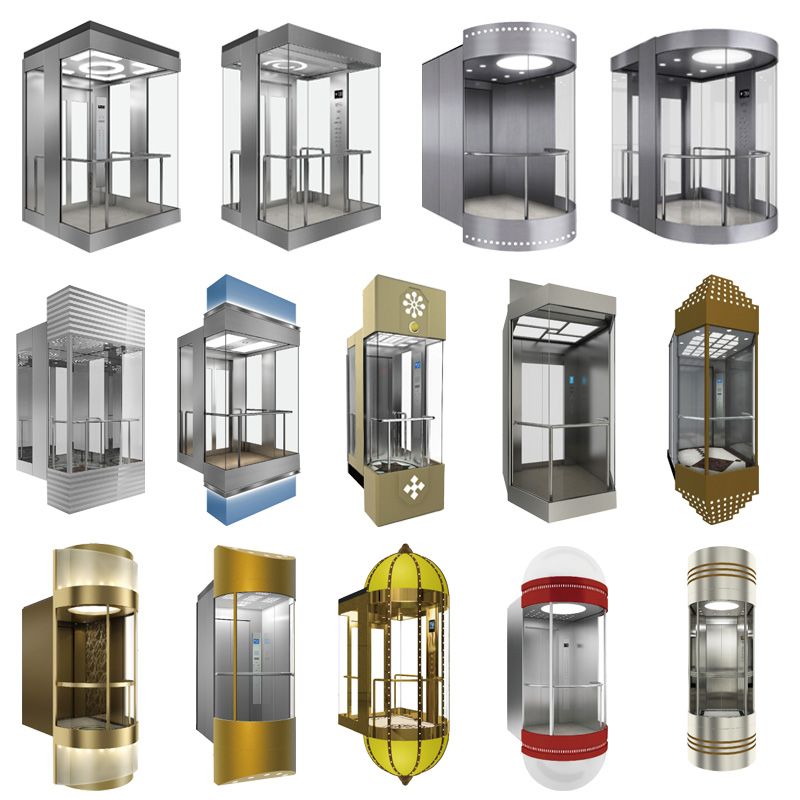

Observation Lift Carbinet
Cheap Glass Passenger Panoramic Lift Observation Elevator Sightseeing Elevator Lifts
