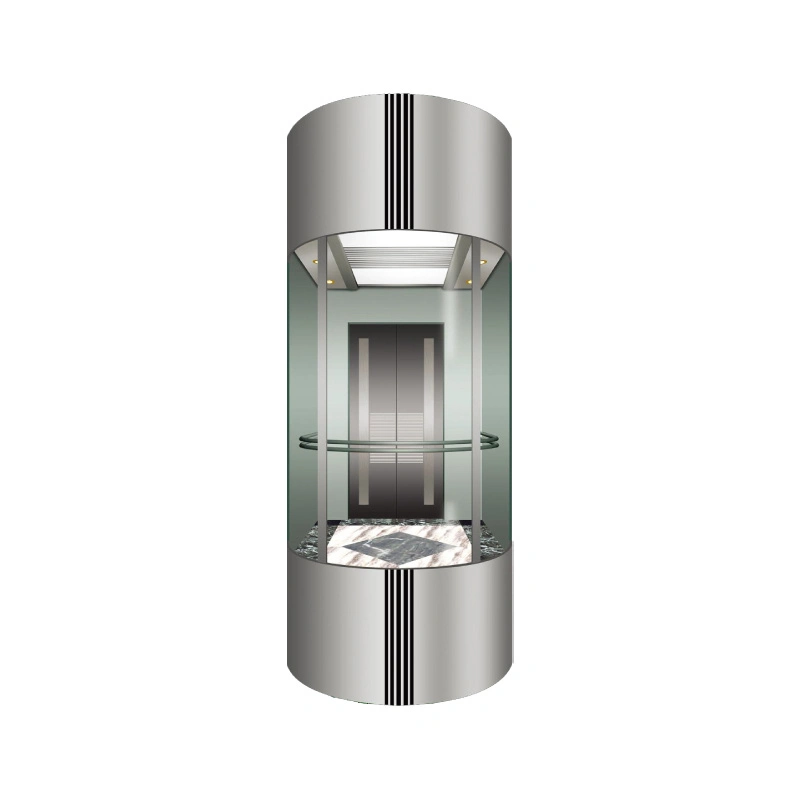

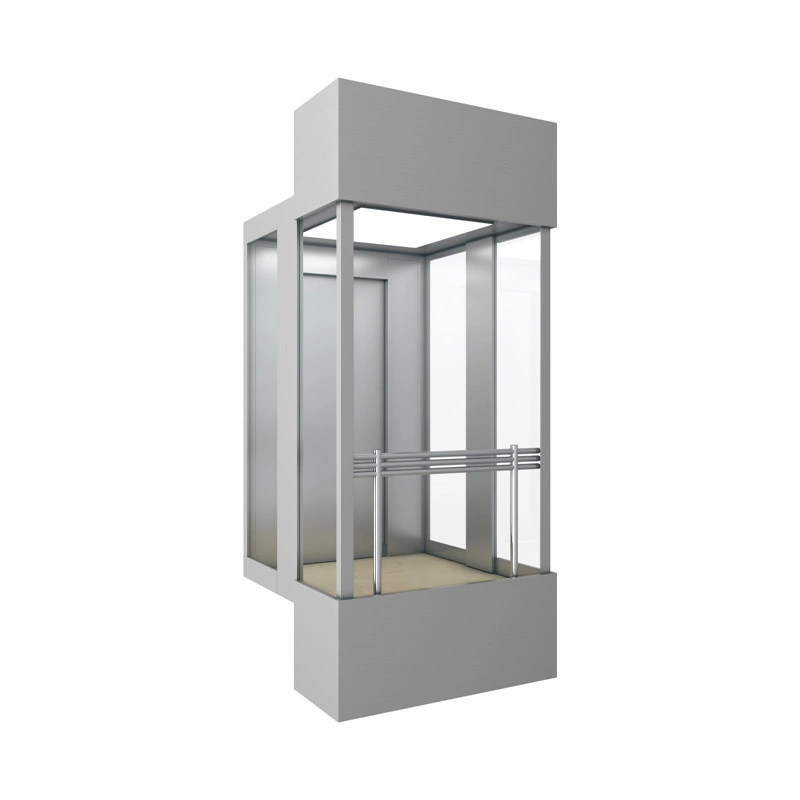

Sightseeing Elevator Modernization Low Price Glass Observation Lift Panoramic Elevator
Sightseeing Elevator Modernization Low Price Glass Observation Lift Panoramic ElevatorCONAI panorama lift series apply the open and deluxe decoration style. It is for super-strong visual aesthetics, the elaborate material, the consummate manufacture craft technology. The excellent sight-seeing lift......
Send Inquiry
Product Description
Sightseeing Elevator Modernization Low Price Glass Observation Lift Panoramic Elevator
CONAI panorama lift series apply the open and deluxe decoration style. It is for super-strong visual aesthetics, the elaborate material, the consummate manufacture craft technology. The excellent sight-seeing lift not only harmoniously combines with your high-grade building, but also adds glamour to each other.

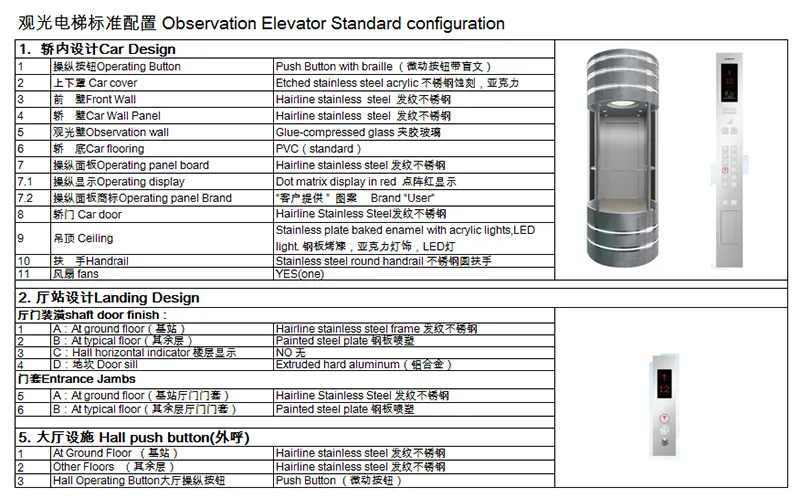

Observation Elevator Configuration Table
Note: Regarding specific data, please refer to the contract.
Shaft Layout
Note: Regarding specific size, please take the construction layout drawing while signing the construct as criterion.
Observation Lift Carbinet
For more types, please contact us.
New Products
CONAI panorama lift series apply the open and deluxe decoration style. It is for super-strong visual aesthetics, the elaborate material, the consummate manufacture craft technology. The excellent sight-seeing lift not only harmoniously combines with your high-grade building, but also adds glamour to each other.
Observation Elevator Configuration Table
Note: Regarding specific data, please refer to the contract.
Shaft Layout
| NO. | Rated capa city (KG/Person) | Speed (m/s) | Net size of car | Net door size | Net size hoistway | Pit depth | Overhead height | Machine room size | Opening mode |
| 1 | 630(8) | 1.0/1.5/1.75 | 1200*1600*2400 | 800*2100 | 2300*2200 | 1800 | 4800 | 3000*3200*2200 | center opening |
| 2 | 800(10) | 1.0/1.5/1.75 | 1400*1600*2400 | 800*2100 | 2400*2200 | 2000 | 5000 | 3000*3500*2400 | |
| 3 | 1000(13) | 1.0/1.5/1.75 | 1400*1800*2400 | 900*2100 | 2450*2400 | 2000 | 5000 | 3000*3500*2400 | |
| 4 | 1250(16) | 1.0/1.5/1.75 | 1500*2000*2400 | 1000*2100 | 2600*2650 | 2000 | 5000 | 3500*4000*2400 | |
| 5 | 1600(21) | 1.0/1.5/1.75 | 1600*2300*2400 | 1100*2100 | 2700*2950 | 2300 | 5000 | 3500*4000*2400 |

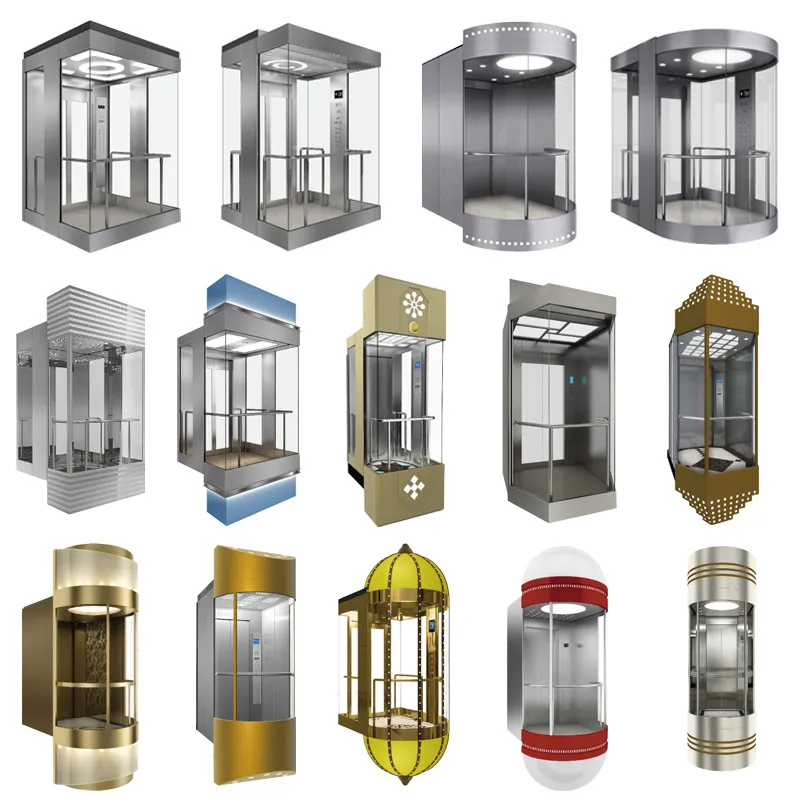

Observation Lift Carbinet
For more types, please contact us.
