Sightseeing Panoramic Passenger Home Villa Elevator with Business Building
Name: Passenger Home Elevator with Professional Service in Residential/Panoramic Business Building Cabin Wall: Art glass, bronze hairlain etched stainless steelCeiling: Hairline Hairline Stainelss steel, acrylic lighting-emitting, down lampHandrail: Stainless steel arc head flat hairlineFloor: PVC /......
Send Inquiry
Product Description
Name: Passenger Home Elevator with Professional Service in Residential/Panoramic Business Building

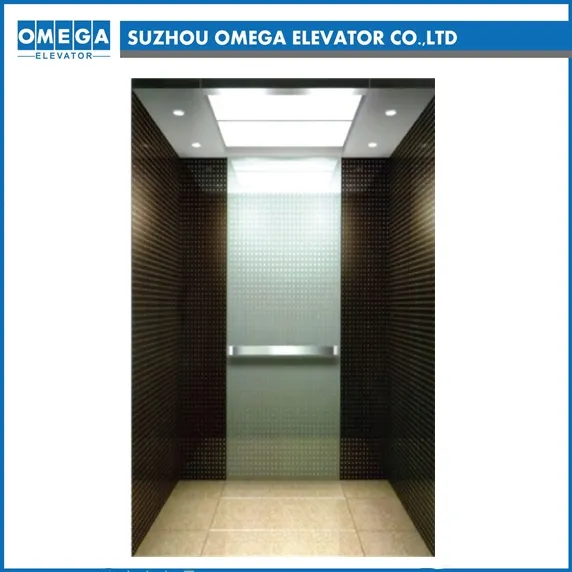

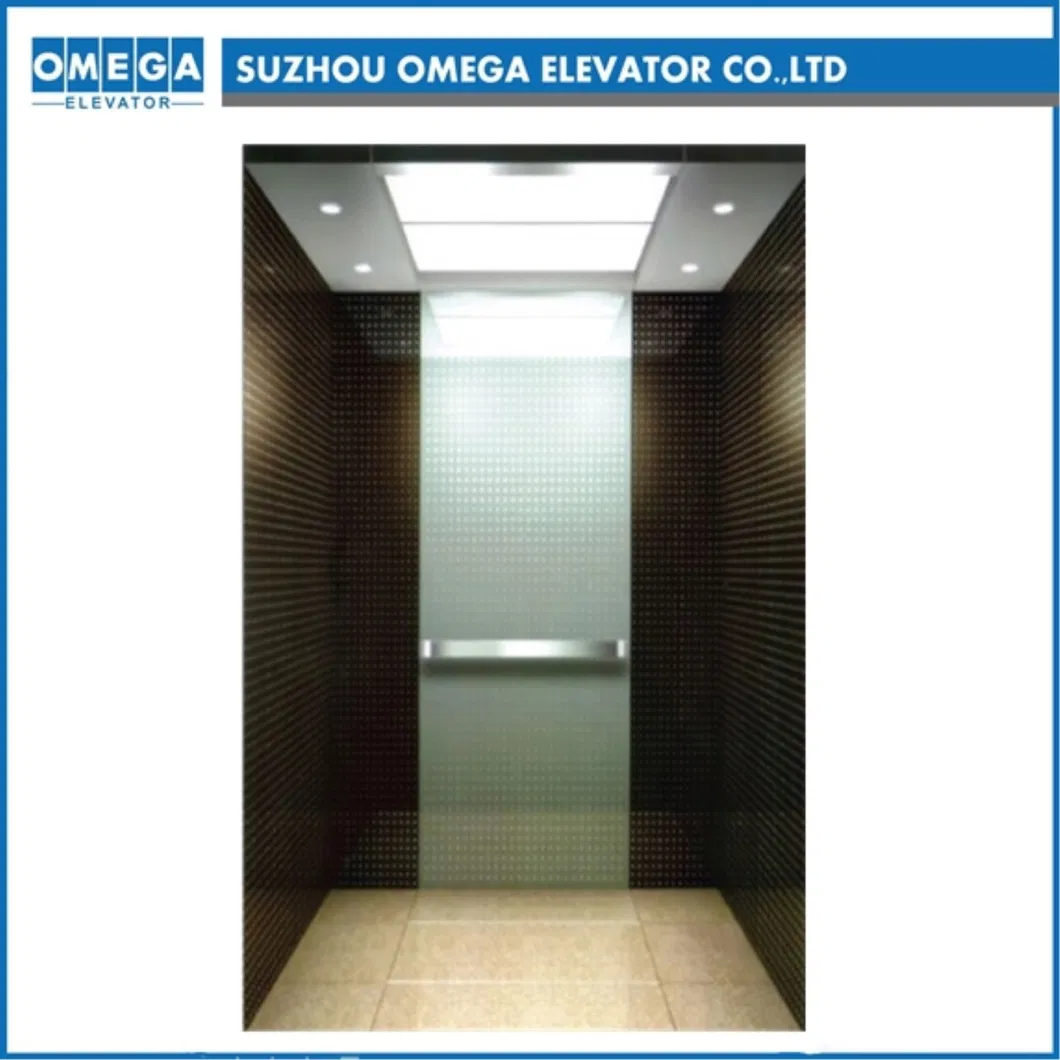

Cabin Wall: Art glass, bronze hairlain etched stainless steel
Ceiling: Hairline Hairline Stainelss steel, acrylic lighting-emitting, down lamp
Handrail: Stainless steel arc head flat hairline
Floor: PVC / MARBLE
| Elevator | Capacity | Speed | Cabin and Door Decoration |
| Passenger Elevator | 320kg~1600kg | MR:V≤4.0m/s MRL: V≤2.5m/s | Standard: Hairline SS Cabin, cabin door and main landing door: hairline stainless steel other landing door: Hairline steel |
| Optional: Mirror stainless steel Etching stainless steel Golden mirror etching finish etc. |
| No. | Function | No. | Function |
| 1 | Collective Selective | 24 | Door lock stop when running |
| 2 | Close door interrupted auto return | 25 | Level adjust |
| 3 | Overload Alarm | 26 | Auto stop |
| 4 | Full load bypass drive | 27 | Floor signal auto-amend |
| 5 | Motor overheat protect | 28 | Door switch protect |
| 6 | Machine room emergency electric operation | 29 | Anti-slid protect |
| 7 | Top floor terminal protect | 30 | Door switch button |
| 8 | Car display | 31 | Landing door/car door lock at certain period |
| 9 | Reset Running | 32 | Landing door open at present floor |
| 10 | Car emergency lightening | 33 | Speed feedback |
| 11 | Car top inspection | 34 | Reverse running protect |
| 12 | Door close time extending protect | 35 | Shaft position self study |
| 13 | 5 part interphone | 36 | Brake feedback inspection |
| 14 | Reverse direction register cancel | 37 | Standby switch |
| 15 | Car Alarm bell | 38 | Car lightening and fan control |
| 16 | Fault register cancel | 39 | Fault self-diagnosis |
| 17 | CPU self protect | 40 | Running direction signal |
| 18 | Auto level | 41 | Fault history record |
| 19 | CAN communication protect | 42 | Service floor setting |
| 20 | Fault auto level | 43 | Floor display setting |
| 21 | Level switch protect | 44 | Auto return main floor |
| 22 | Low speed protect | 45 | Auto return main floor when fire alarm |
| 23 | Shaft self-study diagnosis | 46 | Contactor feedback detection |
| Capacity | Speed | Cabin Size | Shaft Size | Max Travel | Min Floor H | ||||||
| DL | V | Width | Depth | Open | Width | Depth | Pit | OH | MRH | Max R | Min D |
| (kg) | (m/s) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (m) | (m) |
| 630 | 1 | 1400 | 1150 | 800*2100 | 2000 | 1800 | 1500 | 4500 | 2300 | 50 | 2.7 |
| 1.5 | 1600 | 4600 | 70 | ||||||||
| 1.75 | 1700 | 4700 | 90 | ||||||||
| 800 | 1 | 1350 | 1400 | 800*2100 | 2000 | 2100 | 1500 | 4500 | 2300 | 50 | |
| 1.5 | 1600 | 4600 | 70 | ||||||||
| 1.75 | 1700 | 4700 | 90 | ||||||||
| 2 | 2050 | 2100 | 1900 | 5000 | 2500 | 100 | |||||
| 2.5 | 2100 | 5200 | 120 | ||||||||
| 1000 | 1 | 1600 | 1400 | 900*2100 | 2200 | 2100 | 1500 | 4500 | 2300 | 50 | |
| 1.5 | 1600 | 4600 | 70 | ||||||||
| 1.75 | 1700 | 4700 | 90 | ||||||||
| 2 | 2300 | 2100 | 1900 | 5000 | 2500 | 100 | |||||
| 2.5 | 2100 | 5200 | 120 | ||||||||
| 1150 | 1 | 1800 | 1400 | 1000*2100 | 2400 | 2100 | 1500 | 4500 | 2300 | 50 | |
| 1.5 | 1600 | 4600 | 70 | ||||||||
| 1.75 | 1700 | 4700 | 90 | ||||||||
| 2 | 2500 | 2150 | 1900 | 5000 | 2500 | 100 | |||||
| 2.5 | 2200 | 5200 | 120 | ||||||||
| 1350 | 1 | 2000 | 1500 | 1100*2100 | 2600 | 2200 | 1500 | 4500 | 2500 | 50 | |
| 1.5 | 1600 | 4600 | 70 | ||||||||
| 1.75 | 1700 | 4700 | 90 | ||||||||
| 2 | 2700 | 2250 | 1900 | 5000 | 100 | ||||||
| 2.5 | 2200 | 5200 | 120 | ||||||||
| 1600 | 1 | 2000 | 1700 | 1100*2100 | 2600 | 2400 | 1500 | 4600 | 2500 | 50 | |
| 1.5 | 1600 | 4700 | 70 | ||||||||
| 1.75 | 1700 | 4800 | 90 | ||||||||
| 2 | 2700 | 2450 | 1900 | 5100 | 100 | ||||||
| 2.5 | 2200 | 5300 | 120 | ||||||||
Note:
Above standard specification is only for reference. If shaft size at jobsite is different , please contact with us, factory will design suitable one according to your parameter.
About Omega Elevator Co., Ltd.
As a professional manufactory of elevator products, Including elevator, especially elevator automatic door system and semi-automatic door and elevator cabin and full elevator, and related spare parts. Our automatic door main type include Fermator, Selcom and Mitsubishi. So far we have been a partner with customers from Europe, USA, South America, Middle East, etc.
We own one excellent team dedicated in elevator industry. Each of these professionals is guaranteed to provide direct and complete support. And we have kept long and good business relationships with lots of accessory manufacturers and suppliers.
We expect to be your strong partner and create high value-added and quality products to you.

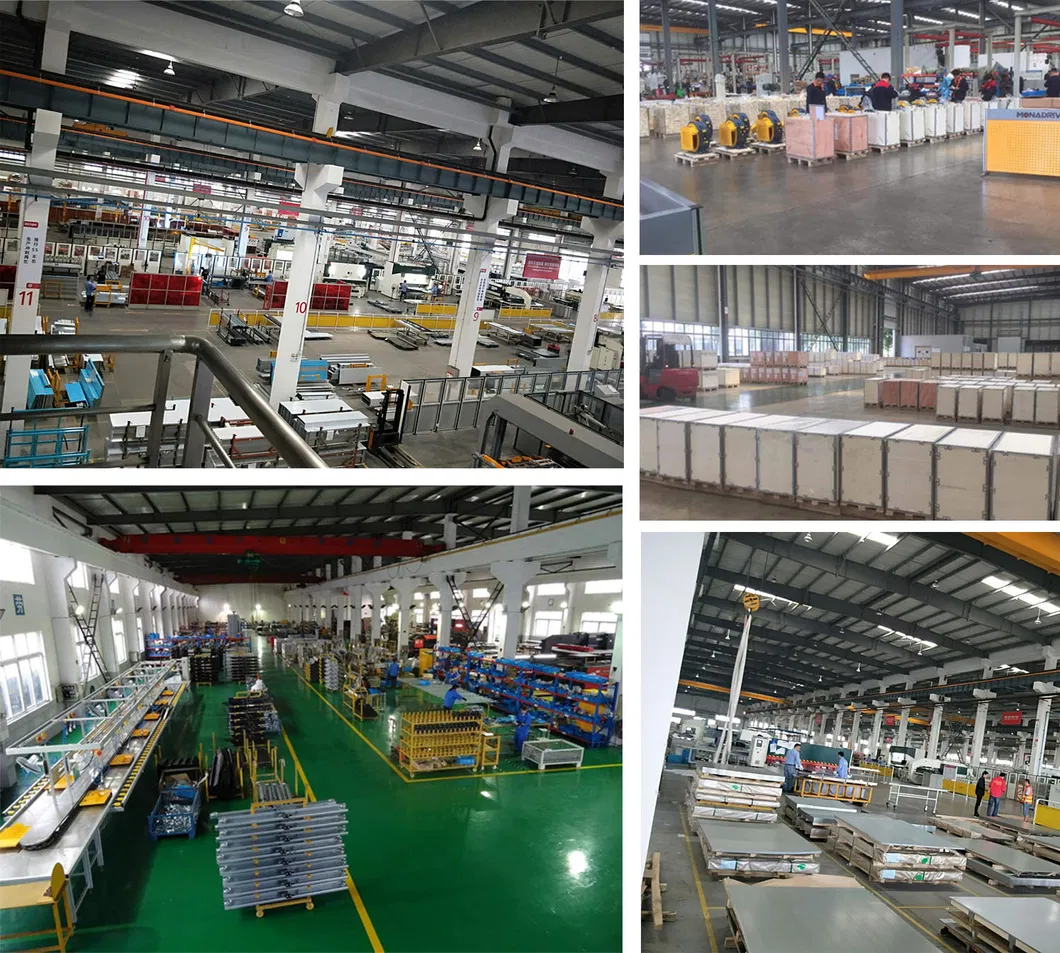

OUR FACTORY

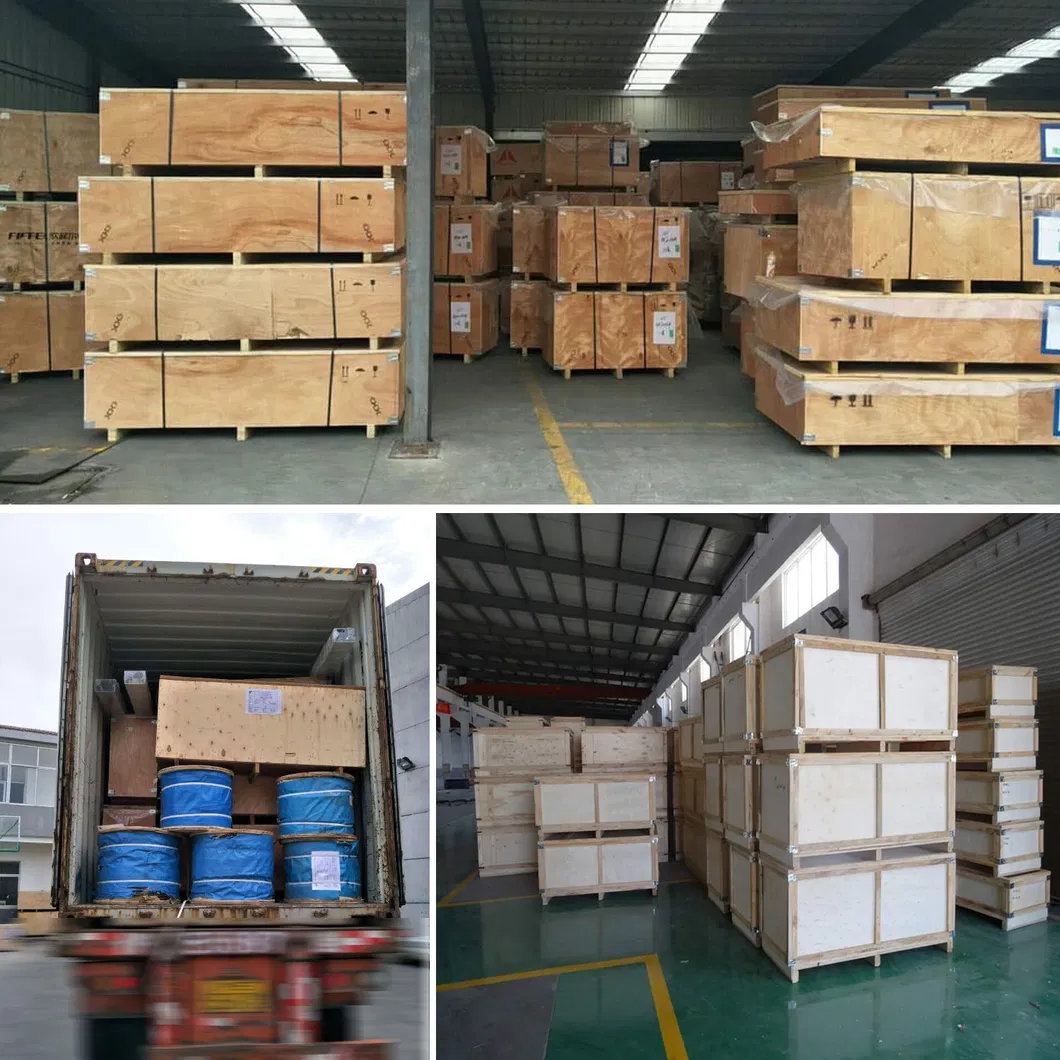

Packing & Delivery
Packing Details :
Fumigated Wooden Case or Fumigation-free Plywood
Delivery Details : within 25 days after the payment.
